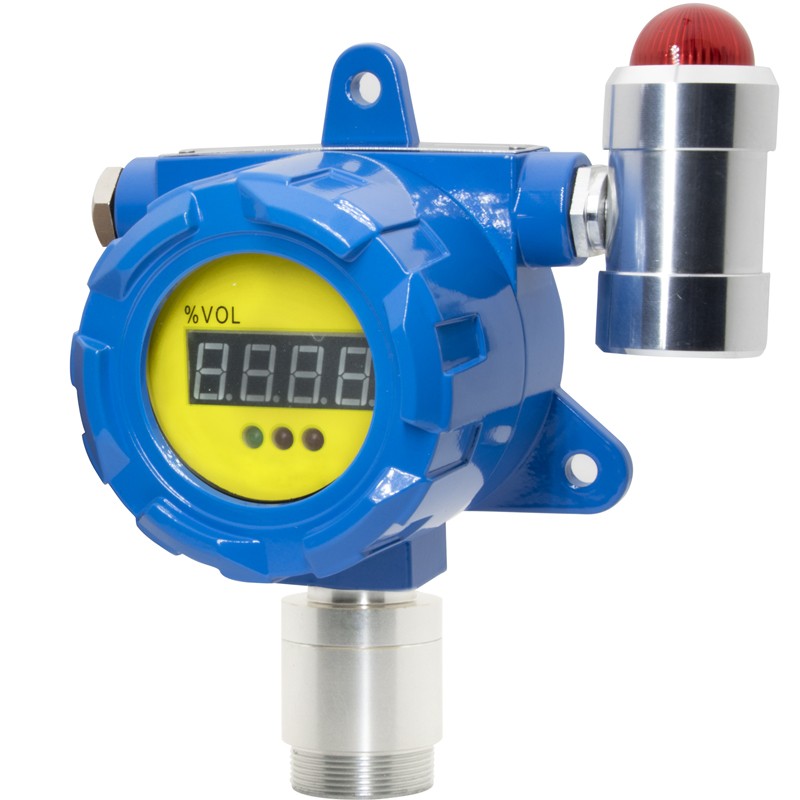

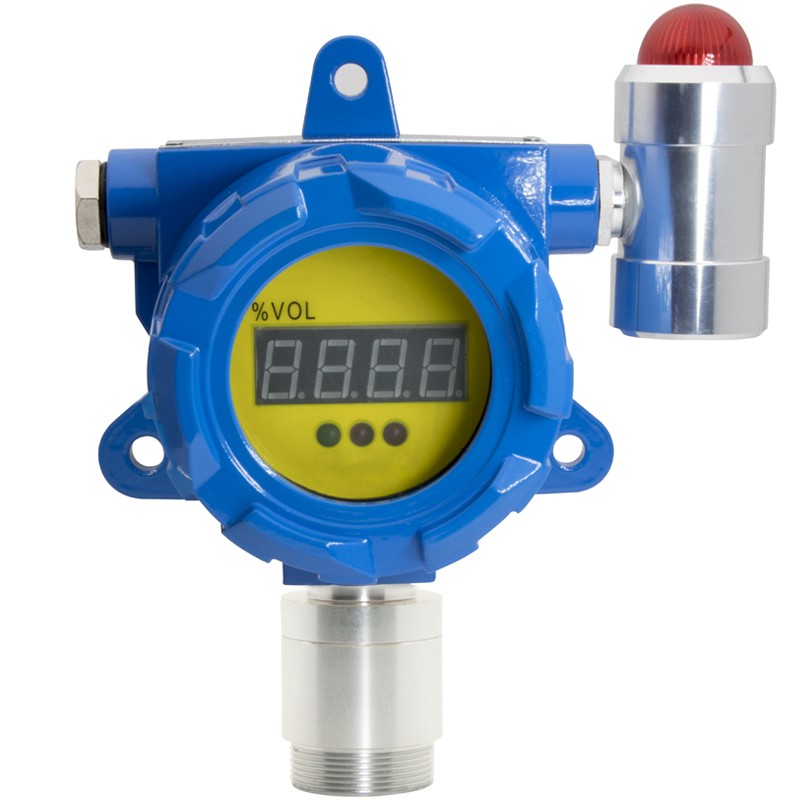

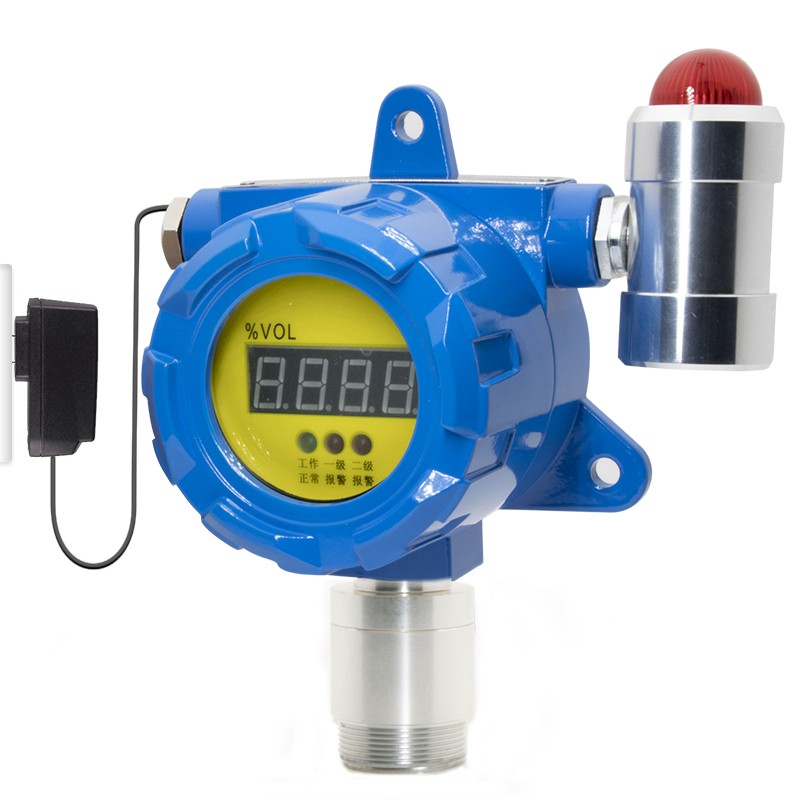

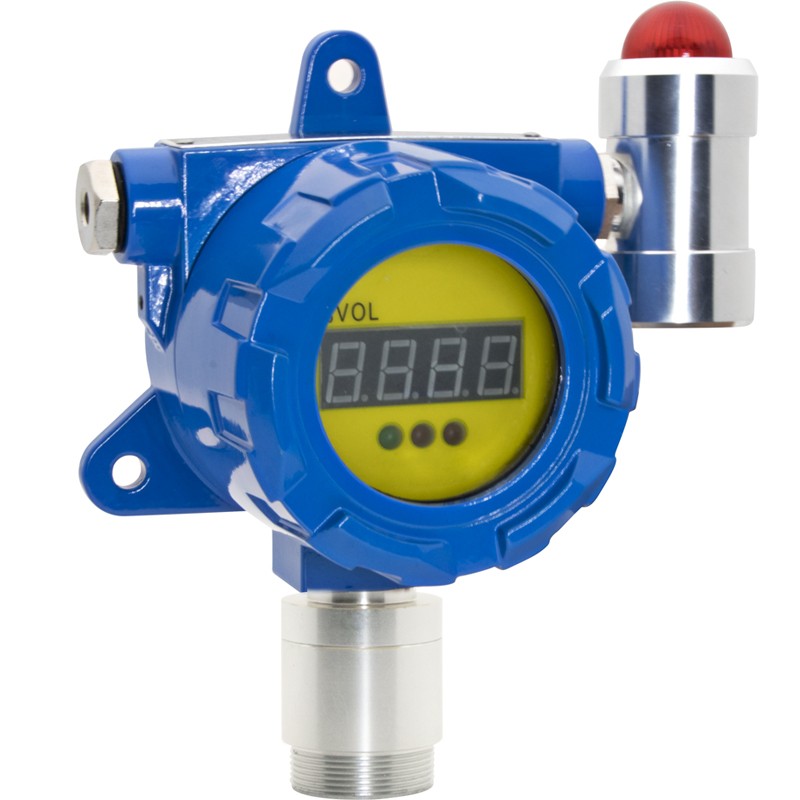

BH-60 Fixed Gas Detector WIth Display

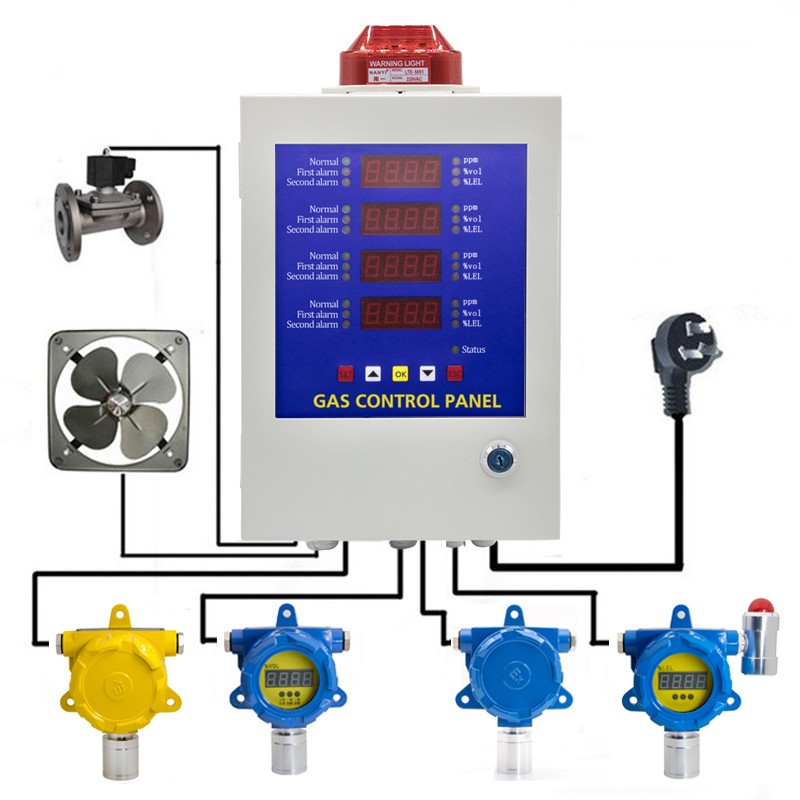

BH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.
We provide gas detector OEM/ODM service.
TAG: Fixed gas detectorBH-60toxic gas detectorlpg detectorBosean
Tel: 8615639095718
Email: info@bosean.com
BH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.
| Product type | BH-60 fixed gas detector/transmitter |
| Explosion proof grade | Exd ⅡC T6 Gb |
| Response time | ≦30S |
| Power supply | DC24V±10% |
| Working temperature | -20℃～50℃ |
| Output current | 4-20mA |
| Working humidity | 0-95%RH |
| Contact output | Free contact output, max power 1kW |
| Single input | 4~20mA and RS485 |
| Installation method | Wall-mounted |
| Shell material | Aluminum |
| Dimensions | 190x150x95mm（L×W×H） |
TAG: Fixed gas detectorBH-60toxic gas detectorlpg detectorBosean
Note: Not all gases and range are listed, if you need more information, please contact us.
| Model | Range | Resolution | L-alarm | H-alarm |
| CO | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| O2 | 0-30%vol | 0.1%vol | 19.5%vol | 23.5%vol |
| H2 | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| H2S | 0-100ppm | 0.1ppm | 10ppm | 20ppm |
| CH4 | 0-100%LEL | 1%lel | 20%LEL | 50%LEL |
| C2H4O | 0-100ppm | 1/0.1ppm | 20ppm | 50ppm |
| EX | 0-100%LEL | 1%lel/1%vol | 20%LEL | 50%LEL |
| C3H8 | 0-100%LEL | 1%lel/1%vol | 20%LEL | 50%LEL |
| C2H5OH | 0-100%LEL | 1%lel/1%vol | 20%LEL | 50%LEL |
| NH3 | 0-100ppm | 0.1/1ppm | 20ppm | 50ppm |
| CL2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| O3 | 0-10ppm | 0.1ppm | 2ppm | 5ppm |
| SO2 | 0-20ppm | 0.1/1ppm | 5ppm | 10ppm |
| PH3 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| CO2 | 0-5000ppm | 1ppm/0.1%vol | 1000ppm | 2000ppm |
| NO | 0-250ppm | 1ppm | 50ppm | 150ppm |
| NO2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| HCN | 0-50ppm | 0.1/0.01ppm | 10ppm | 20ppm |
| HCL | 0-20ppm | 0.001/0.1ppm | 5ppm | 10ppm |
| CH2O | 0-20ppm | 1/0.1ppm | 5ppm | 10ppm |
| HF | 0-10/50/500ppm | 0.1/1ppm | 2ppm | 5ppm |
| C7H8/C8H10 | 0-20ppm | 0.01/0.1ppm | 5ppm | 10ppm |
