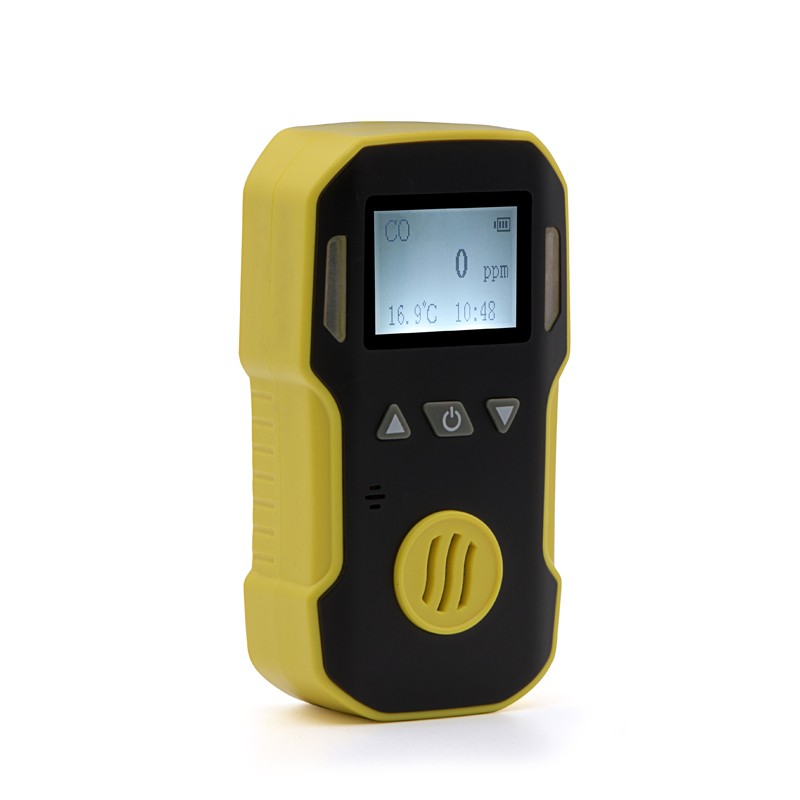

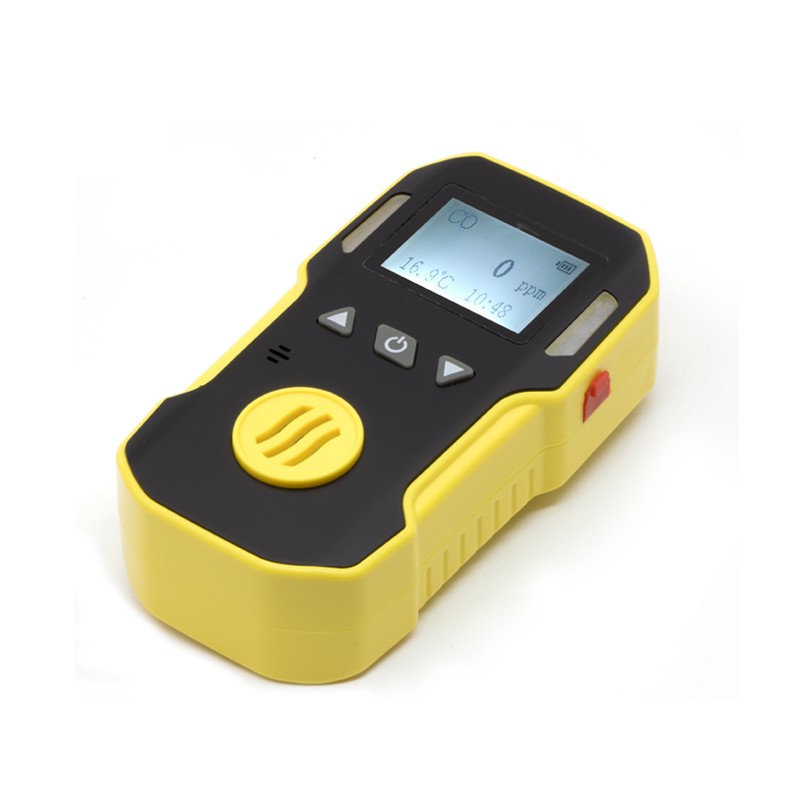

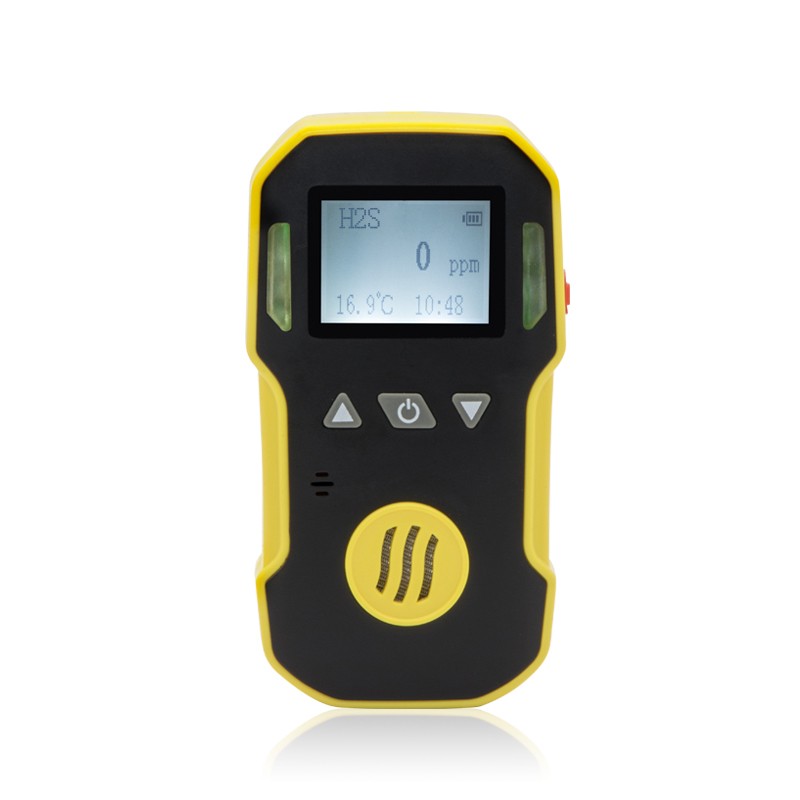

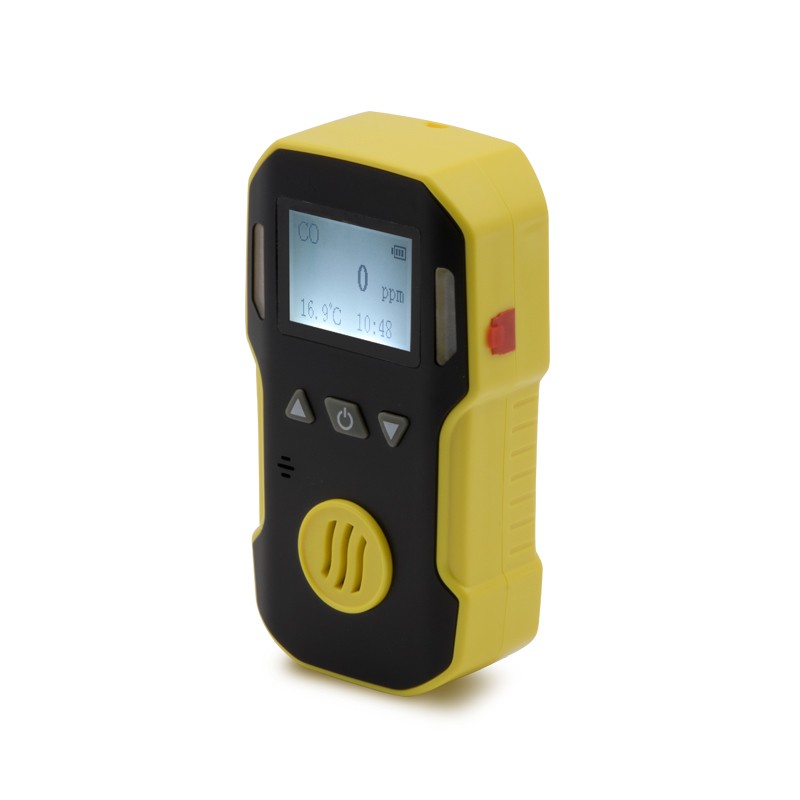

BH-90A Single Gas Detector

BH-90A portable single gas detector can make continuous detection to combustible and toxic gases. It is suitable for combustible and toxic gas leakage detection in underground pipe or mines, and keeps the workers safe, prevents the facilities from being destroyed.The detector, adopting excellent-quality sensor, makes detection in the way of natural diffusion. It has good sensitivity and reproducibility. The detector adopts embedded MCU controller, easy to operate.

The shell adopts special high strength material and anti-smooth rubber, with the characters of water-proof and dust-proof.

We provide gas detector OEM/ODM service.


TAG:  BoseanBH-90Aportable gas detectorgas detector oemsingle Gas Detectorhydrogen leak detector
Introduction

Gas Detected:

combustible gas (CH4,C3H8,H2) and toxic gas, oxygen, Other rare toxic gas like ammonia, NO, PH3, NH3, NO2, HCN, SO2 etc also available,Can be specified by the Customer in advance.

*Advanced MCU control with low power consumption;

*Adjustable low and high alarm level;

*Adjustable calibrating level;

*High concentration protection for combustible gas;

*Self test for the combustible gas sensor;

*Low battery indication;

*Self-adjustment function

*Visual and audible alarm with vibration;

*Advanced self-examination and self-renovation function

*Password management to avoid wrong operation;

*Explosive proof housing.

Accuracy

≦ 5% F.S.

Response time

T<30s

Indication

LCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration

Operating Environment

Operating temperature -40℃~70℃ (for combustible gas)

Operating temperature: -20℃~50℃ (for toxic gas)

Humidity

<95%RH non-condensing

Operating voltage

DC3.7V Li battery 1500mAh

Working time

≧8h continuously

Charging time

4h~6h

Sensor life

2 years

Protection category

IP65

Weight

about 130g (including battery but without accessories)

Dimension

100mm×60mm×30mm


TAG:  BoseanBH-90Aportable gas detectorgas detector oemsingle Gas Detectorhydrogen leak detector
Specifications

Note: Not all gases and range are listed, if you need more information, please contact us.

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm

Note: Not all gases and range are listed, if you need more information, please contact us.
