BH-GSP Gas Sampling Pump
The gas sampling pump is a self-priming pump that can be used with a gas detector. We provide gas detector OEM/ODM service.
TAG: gas sampling pumpgas detector accessoriesBosean
Tel: 8615639095718
Email: info@bosean.com
Introduction

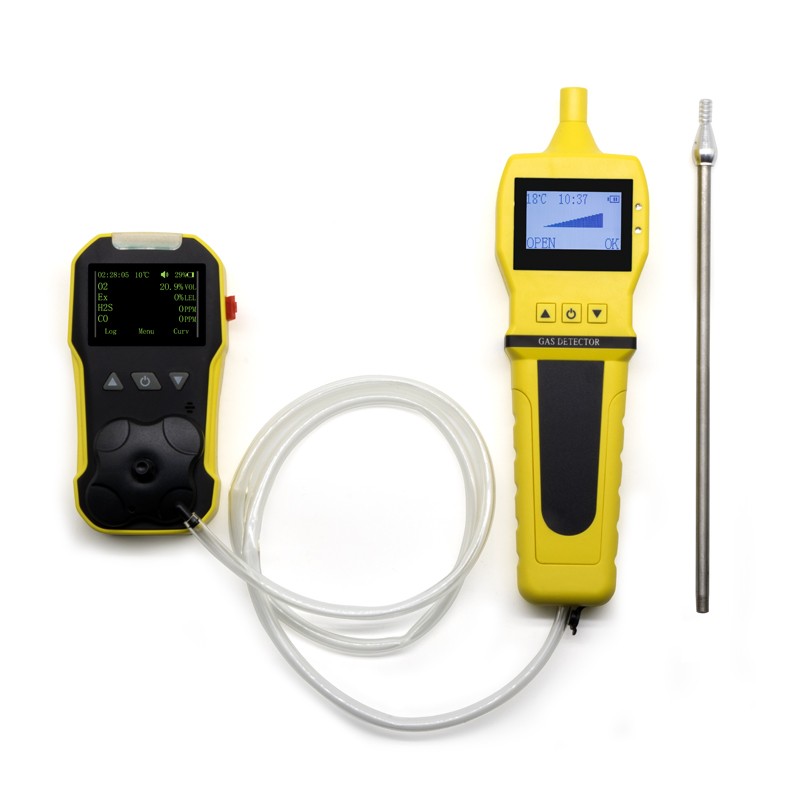

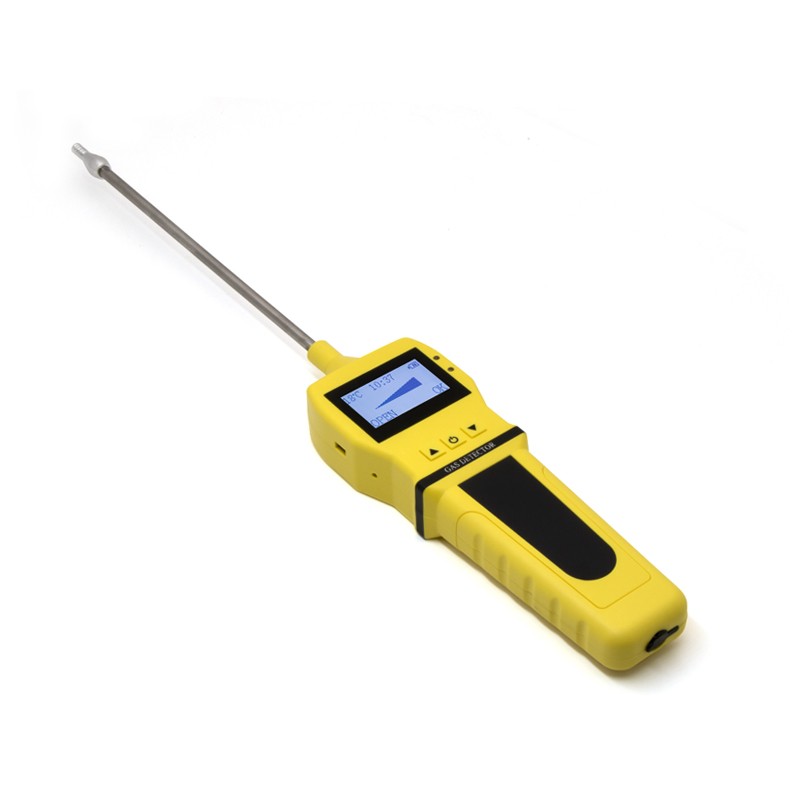

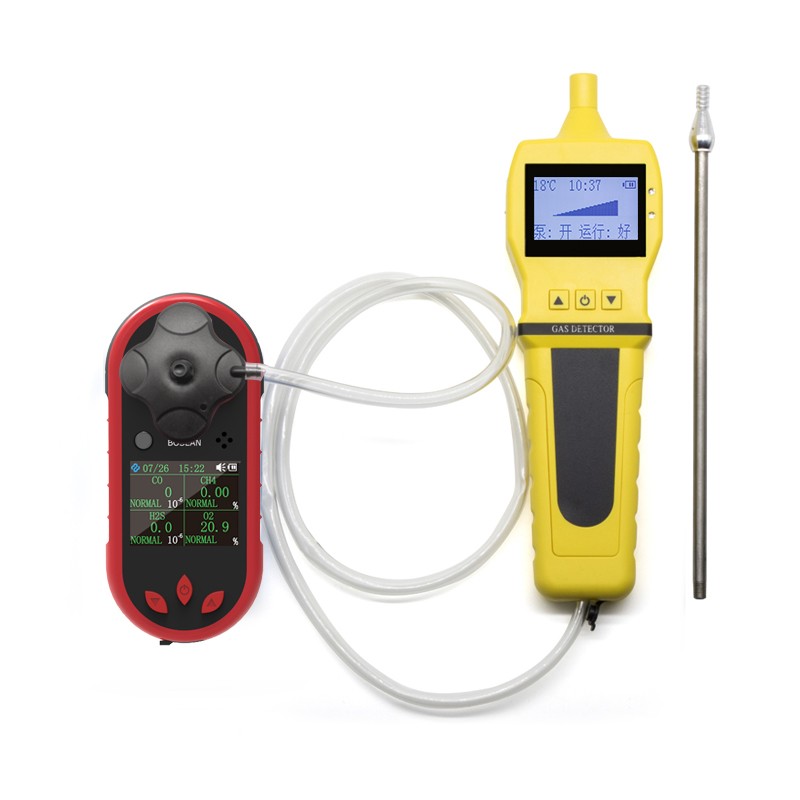

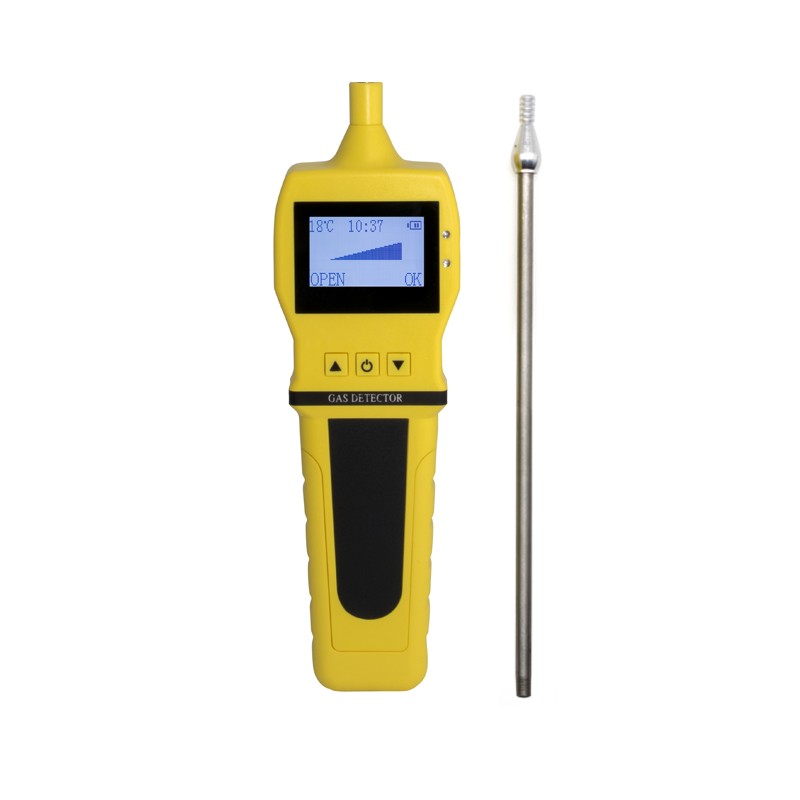

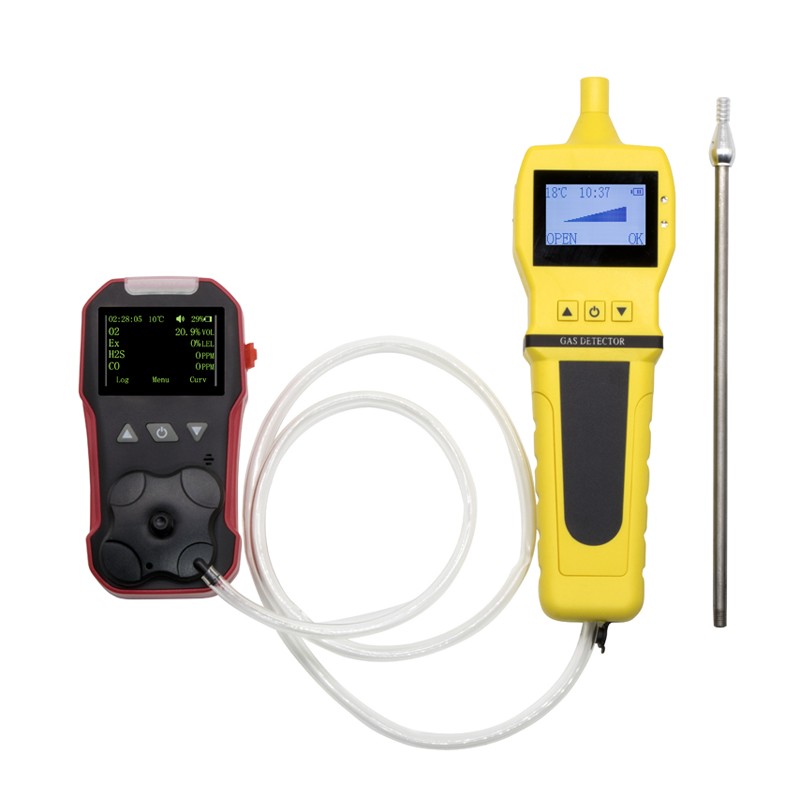

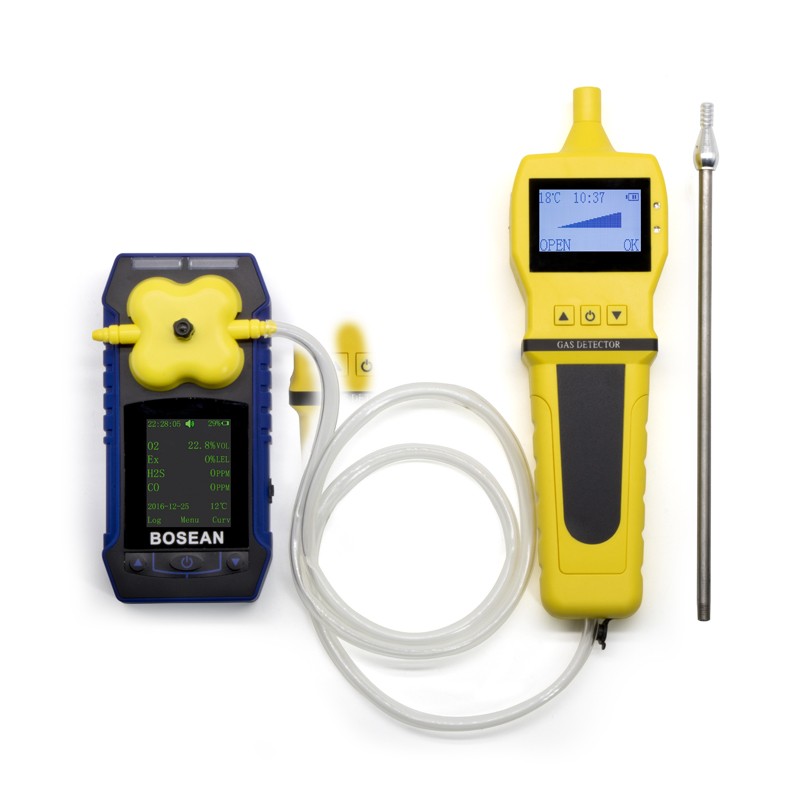

The gas sampling pump is a self-priming pump that can be used on a gas detector. The principle uses a carbon membrane self-priming type. The gas to be detected can be pumped through the sampling pump, and the gas detector is used to calibrate the gas leak. The content is small, the operation is simple, and the pumping probe is extended.
| Display method： | LCD |
| Inspiratory flow： | 500ml/min |
| Working humidity | ≤97%RH |
| Preheat time | <20S |
| Standard configuration： | Probe, Hose, Charger |
| Operating Voltage： | DC3.7v 1800mAH |
| Alarm volume： | 75dB |
| Ambient temperature： | -20 ~50℃ |
| Dimensions： | 225mmx65mmx30mm（长x宽x高） |
| Probe length： | 220mm |
TAG: gas sampling pumpgas detector accessoriesBosean
Specifications
| Model | Range | L-alarm | H-alarm |
| CO | 0-1000ppm | 35ppm | 200ppm |
| O2 | 0-30%vol | 19.5%vol | 23.5%vol |
| H2 | 0-100%LEL | 20%LEL | 50%LEL |
| H2S | 0-100ppm | 10ppm | 20ppm |
| CH4 | 0-100%LEL | 20%LEL | 50%LEL |
| C2H4O | 0-20ppm | 10ppm | 15ppm |
| C2H4 | 0-100%LEL | 20%LEL | 50%LEL |
| C3H8 | 0-100%LEL | 20%LEL | 50%LEL |
| C2H5OH | 0-100%LEL | 20%LEL | 50%LEL |
| NH3 | 0-100ppm | 25ppm | 50ppm |
| CL2 | 0-20ppm | 5ppm | 10ppm |
| O3 | 0-20ppm | 5ppm | 10ppm |
| SO2 | 0-100ppm | 2ppm | 5ppm |
| PH3 | 0-20ppm | 0.3ppm | 5ppm |
| CO2 | 0-50000ppm | 1000ppm | 2000ppm |
| NO | 0-250ppm | 20ppm | 50ppm |
| NO2 | 0-20ppm | 5ppm | 10ppm |
| HCN | 0-500ppm | 10ppm | 20ppm |
| HCL | 0-50ppm | 10ppm | 20ppm |
| CH2O | 0-10ppm | 2ppm | 5ppm |
| VOC | 0-100ppm | 20ppm | 50ppm |
| C6H6 | 0-100ppm | 20ppm | 50ppm |
