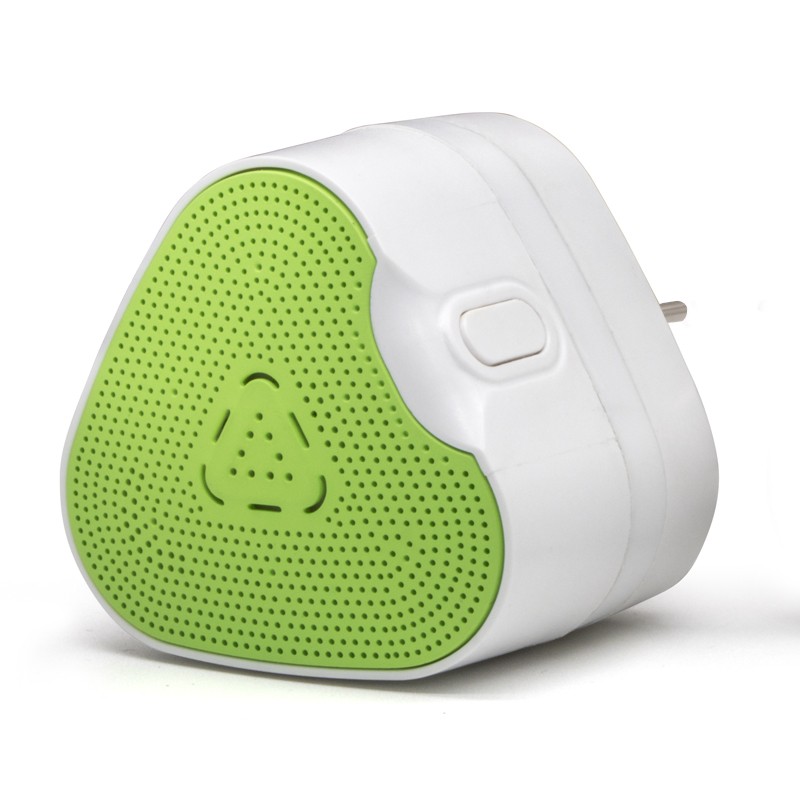

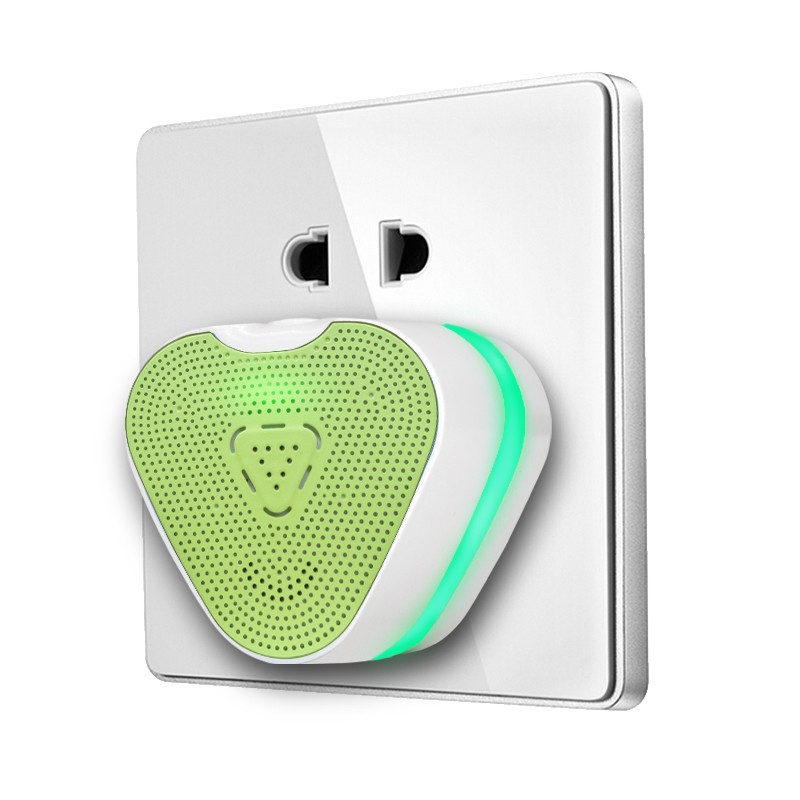

BH-H1 Gas Alarm
This product is a gas alarm, which has high sensitivity, high stability and small size. We provide gas detector OEM/ODM service.
TAG:  BH-H1 Gas Alarm domestic gas alarm gas detector home natural gas detector
Introduction
This product is a flammable gas alarm, which has passed the national 3C certification. The product has high sensitivity, high stability and small size. Advanced ARM microprocessor control. A variety of alarm functions are available. The flammable gas alarm adopts high-performance sensor, which has the characteristics of high stabilizer, high sensitivity, small drift, etc. It is widely used in places where flammable gas leakage may occur, such as: home, hotel, apartment, shopping mall, etc.,for safety monitoring, can be effective protects the safety of national people and property.
1. in pre-heating status: the indicator light and the ring alarm light keeps green for about 1 minite.
2. in normal status: the ring alarm light keeps flashing.
3. in alarm status: the ring alarm turns red, and keeps sending out "beep, beep, beep" alarm sound.
Model | BH-H1 |
Detecting gas | Combustible gas |
Sensor type | Semi-conductor sensor |
Gas Sampling | Diffuse naturally |
Alarm set point | 5% LEL |
Warming time | 180±10s |
Accuracy | Combustible gas: ±3%LEL / CO: ±50PPM |
Response time | ≦30s |
Power | AC110V-220V |
Power Consumption | <1W |
Alarm Method | Beep sound with red indicator light |
Sound level | ≧70dB |
Environment | Temperature: 0℃~55℃ Humidity: <97% no dew |
Life | 5 year (normal use) |
Weight | 55g |
Dimension | L×B×H(mm):51×43×49 |
TAG:  BH-H1 Gas Alarm domestic gas alarm gas detector home natural gas detector
Specifications
Model | Range | L-alarm | H-alarm |
CO | 0-1000ppm | 35ppm | 200ppm |
O2 | 0-30%vol | 19.5%vol | 23.5%vol |
H2 | 0-100%LEL | 20%LEL | 50%LEL |
H2S | 0-100ppm | 10ppm | 20ppm |
CH4 | 0-100%LEL | 20%LEL | 50%LEL |
C2H4O | 0-20ppm | 10ppm | 15ppm |
C2H4 | 0-100%LEL | 20%LEL | 50%LEL |
C3H8 | 0-100%LEL | 20%LEL | 50%LEL |
C2H5OH | 0-100%LEL | 20%LEL | 50%LEL |
NH3 | 0-100ppm | 25ppm | 50ppm |
CL2 | 0-20ppm | 5ppm | 10ppm |
O3 | 0-20ppm | 5ppm | 10ppm |
SO2 | 0-100ppm | 2ppm | 5ppm |
PH3 | 0-20ppm | 0.3ppm | 5ppm |
CO2 | 0-50000ppm | 1000ppm | 2000ppm |
NO | 0-250ppm | 20ppm | 50ppm |
NO2 | 0-20ppm | 5ppm | 10ppm |
HCN | 0-500ppm | 10ppm | 20ppm |
HCL | 0-50ppm | 10ppm | 20ppm |
CH2O | 0-10ppm | 2ppm | 5ppm |
VOC | 0-100ppm | 20ppm | 50ppm |
C6H6 | 0-100ppm | 20ppm | 50ppm |
