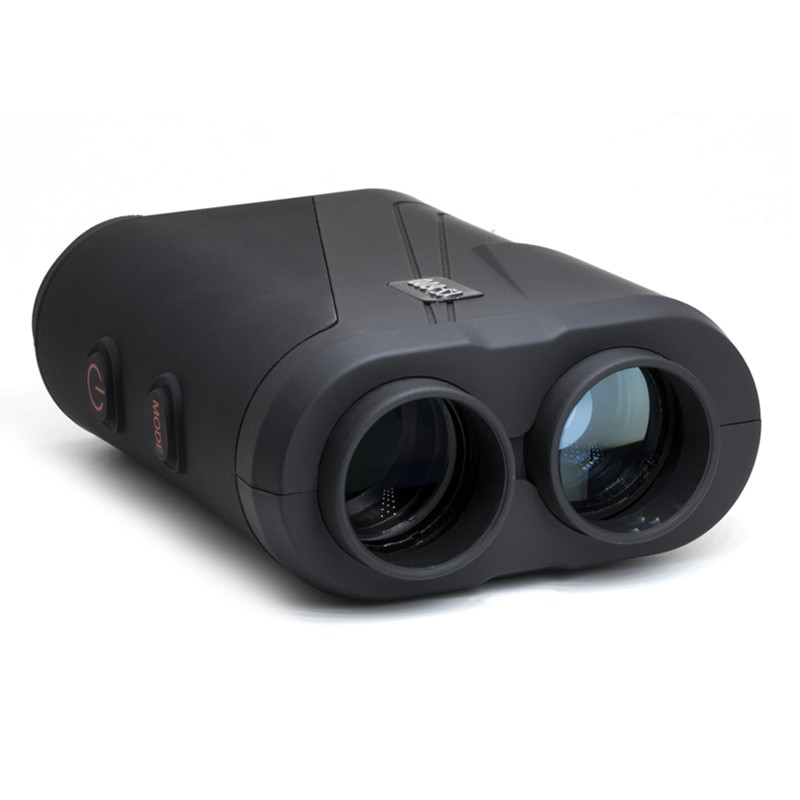

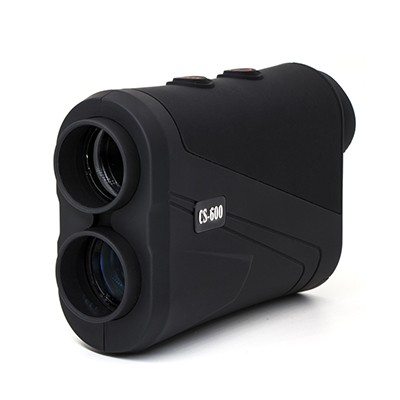

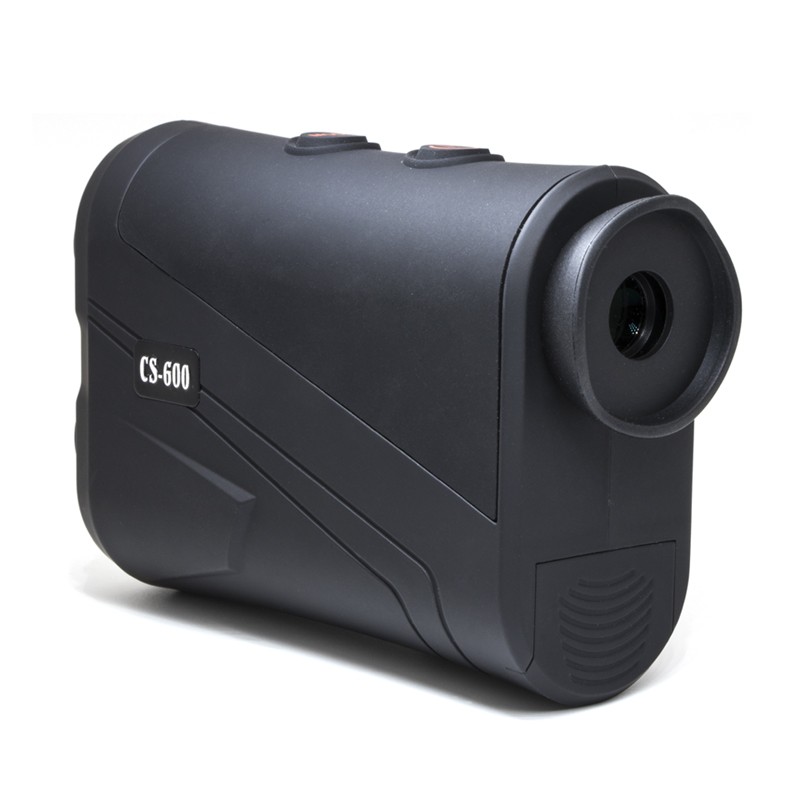

CS Series Laser Rangfinder

The CS series laser rangefinder telescope uses a 7x26 large-caliber multi-coated optical lens to ensure sufficient light transmission rate. Even at a distance of 1500 meters, you can clearly observe the measurement object. We provide rangefinder OEM/ODM service.

TAG: golf laser rangefinder laser rangefinder hunting laser rangfinder

Tel: 8615639095718
Email: info@bosean.com

We’re here to help:Easy ways to get the answers you need
Send E-mail Get Price

Introduction

Laser rangefinder has a wide variety of applications in golf course, road range, electricity installation industry, construction and industries. It is very useful and convenient to give accurate measurement of distance, area and volume especially in large areas such as rooms, apartments, buildings, real estates, factories, warehouses, gardens, roads, infrastructures, etc.

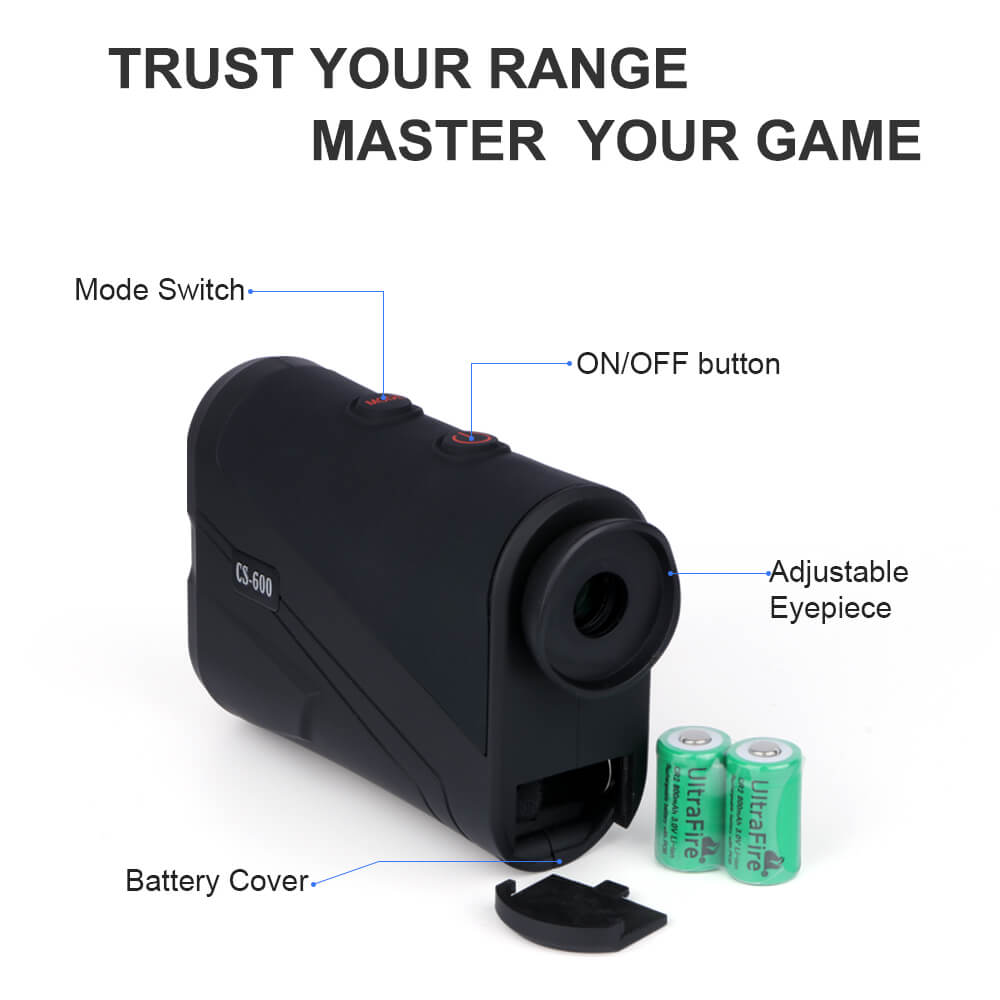

1. Our laser range ﬁnder is of 7X optical viewing system, basic series has distance and speed measurement function, and the ﬂagpole mode. (height and angle measurement function is optical for higher series.) what’s more, under the distance measurement and height measurement mode, our device allow to show the horizontal distance and height result at the same time, which is very useful for playing golf.

2. The smooth and fashionable design makes it very comfortable to be held in hands.

3. The measuring result can be showed either in meter or Yard, which can be exchanged easily by long pressing the mode button.

TAG: golf laser rangefinder laser rangefinder hunting laser rangfinder

Specifications

Item	CS Series High Accuracy laser distance meter digital laser rangefinder
Measurement Range	5-600m/1000m/1500m
Measurement Accuracy	±（0.5m±D*0.2%）
Measurement Time	0.1- 0.3s
Operating Temperature Range	0°C ~ 40°C
Storage Temperature Range	-20°C ~ 50°C
Unit Selection	M/YD
Laser Light Type	905nm
Eye Relief	3.8mm
Objective Caliber	24mm
Eyepiece Caliber	16mm
Magnification	7X
Range of Anger Measurement	＜±90º
Display Mode	LCD Screen
Field of View Angle	7º
Diopter Adjustable Range	±3º
Measuring Standard Switch	√
Data clearing	√
Battery indicator	√
Signal strength indicator	√
Continuous measurement( max/ min)	√
Addition/ Subtraction	√
Volume/ Area/ Pythagorean measurement	√
Trapezoid Measurement	√
Triangular Area Measurement	√
Back Light	√
Laying off	√

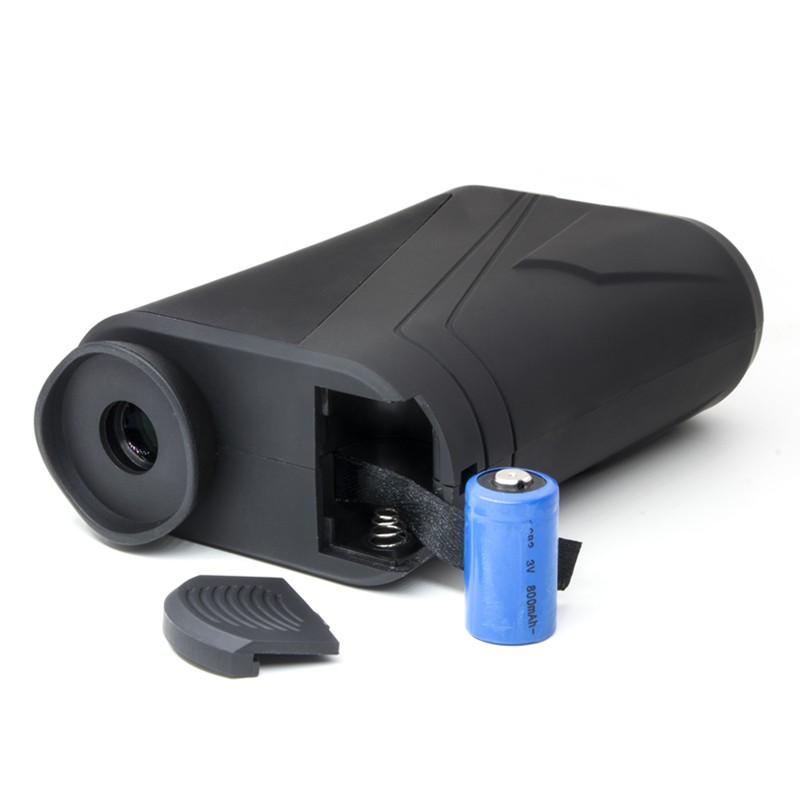

Battery type	CR2-3V
Size	1257745 mm
Weight	178 g
