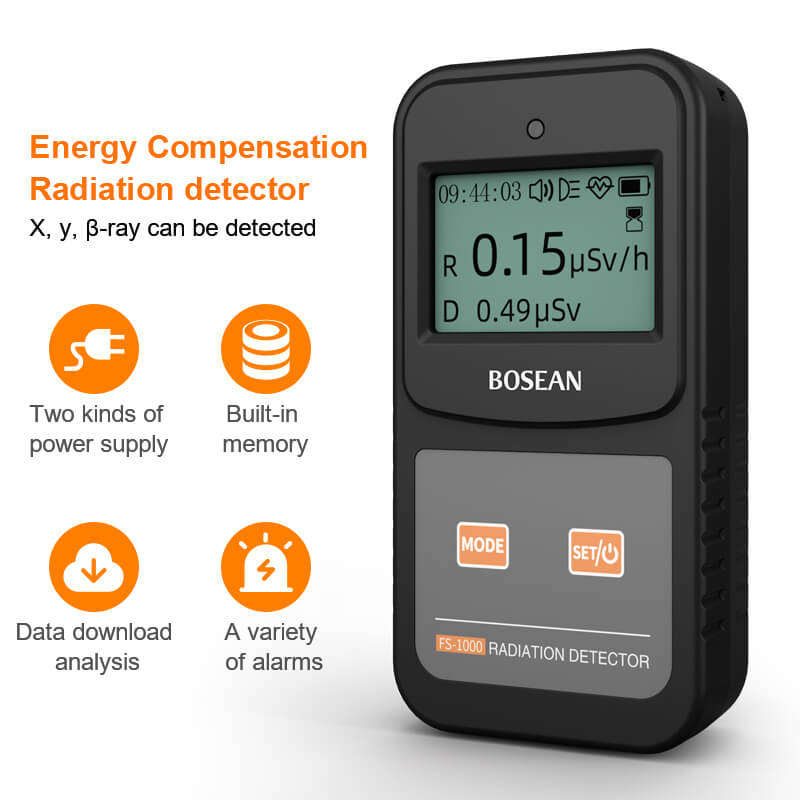

FS-1000 Nuclear Radiation Detector

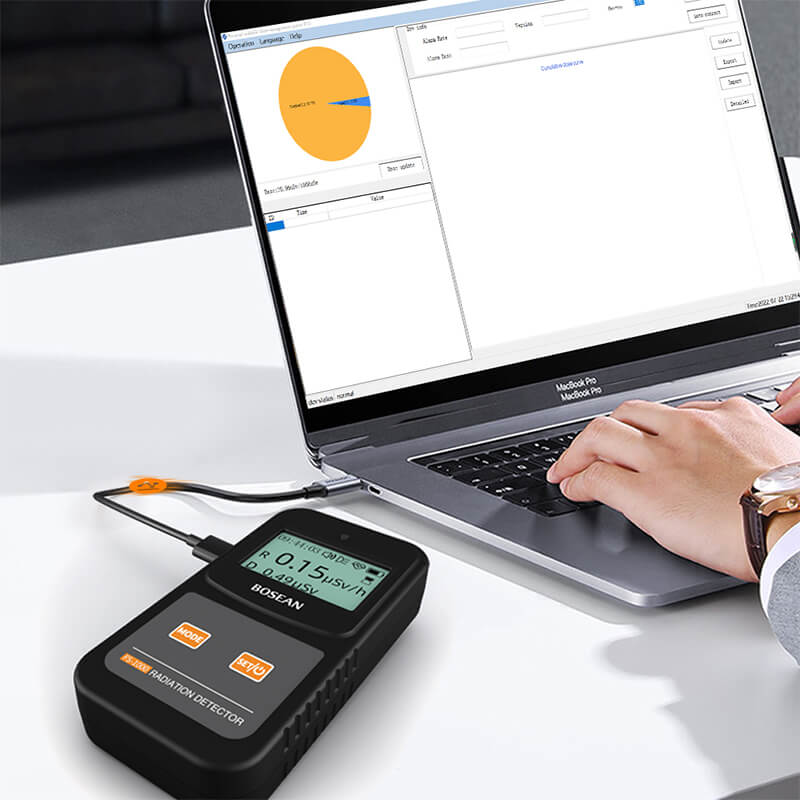

FS-1000 Nuclear Radiation Detector is connected to the computer equipped with the software through the USB data cable, which can reakze data download, analysis, management and other functions, and can fully and intuitively display personal The details of the cumulative dose equivalent are convenient for customers to understand and manage the data.

We provide nuclear radiation detector OEM/ODM service.


TAG:   FS-1000 nuclear radiation detector radiation detector radiation dosimeter
Introduction

1. Measure the dose rate real-time, and record the cumulative dose at the same time.

2. The dose rate alarm threshold and dose alarm threshold can be continuously adjustable and arbitrarily set.

3. With timing measurement function, the timing time can be set arbitrarily between 1-99 hours.

4. Can view the start date of the current cumulative dose.

5. Have dual alarm functions of dose rate and dose value.

6. There are two alarm modes of sound and light to choose at will.

7. When the radiation dose rate exceeds 10mSv/h, it has a blocking waming prompt function (display 999MAX).

8. Built-in memory, the accumulated dose value, dose rate alarm threshold and dose alarm threshold data will not be lost after power off.

9. With calendar and clock functions, the time can be recorded normally even after shutting down.

10. Continuous monitoring of battery power, Low battery reminder function.

11. Chinese/English menu can be switched freely.

12. Screen backlight ON/OFF function.

13. Particle sound ON/OFF function.

14. The external Type-C interface can be used for power supply.


TAG:   FS-1000 nuclear radiation detector radiation detector radiation dosimeter
Specifications

Material: ABS

Color: Black & White

Detector: Energy compensation type G-M counter tube

Measuring range: 0.1μSv/h-10mSv/h

Dosage: 0.00μSv-1000Sv

Sensitivity: >1cps/uSv/h (relative to 60Co)

The maximum dose equivalent rate: 99.99μsv/h

Voice source: real particle sound / alarm sound /mute

Alarm threshold: 0.5 (Adjustable)

The use of ambient temperature: -10 ~+50℃

Relative humidity: less than 95%

Energy response: 48keV-1.5MeV

Relative intrinsic erroe:<5%(at 1mSv/h)

Power supply: 3 x AA battery (Not included) or USB cable (included)

Power consumption: <100mW

Temperature characteristics: -10°C~+ 50°C

Item size: 116*60*25(mm)

Item weight: 145g / 5.1ounce

Package size: 160*60 *25mm

Package weight: 160g


TAG:   FS-1000 nuclear radiation detector radiation detector radiation dosimeter
