K-40 Multi Gas Detector (IP67)

The K40 multi gas detector uses an advanced large-scale integrated circuit technology,Intelligent design technology and proprietary digital simulation hybrid communication technology gas detector. The detector uses a natural diffusion method to detect gas, and the sensitive element uses high -quality gas sensors. It has excellent sensitivity and excellent repetitiveness, convenient use and maintenance, which greatly meets the safety of the industrial sit.

We provide gas detector OEM/ODM service.


TAG:  h2s gas detectorIP67 gas detectorK40k40 multi gas detector
Introduction

The shell is made of high -strength engineering plastics and composite non-slip rubber. High intensity, good feel, waterproof, dustproof, explosion -proof. This detector is widely used in oil, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture and other industries.

Sampling method

natural diffusion

Accuracy

≦ 5% F.S.

Response time

T<60s

Explosion proof

Ex ib IIB T3 Gb

Alarm Method

 four alarm method: sound, vibration, light, display

Operating Environment

Operating temperature -10℃~55℃

Humidity

<95%RH non-condensing

Operating voltage

DC3.7V Li battery 1800mAh

Working time

≧8h continuously

Charging time

4h~6h

Sensor life

2 years

Protection category

IP67

Weight

about 300g (including battery but without accessories)

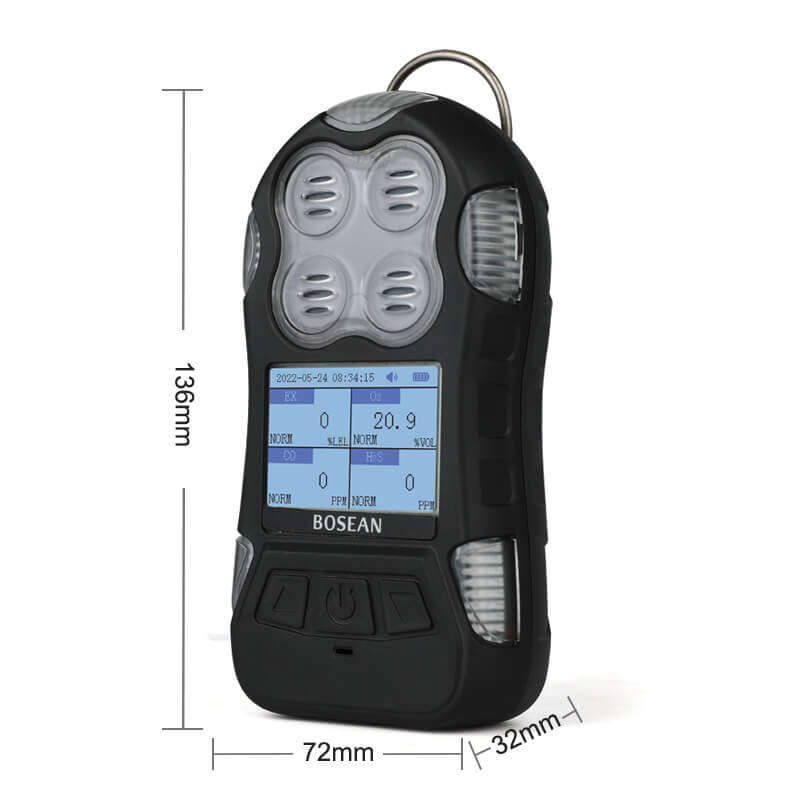

Dimension

136mm×72mm×32mm


TAG:  h2s gas detectorIP67 gas detectorK40k40 multi gas detector
Specifications

Note: Not all gases and range are listed, if you need more information, please contact us.

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm

Note: Not all gases and range are listed, if you need more information, please contact us.
