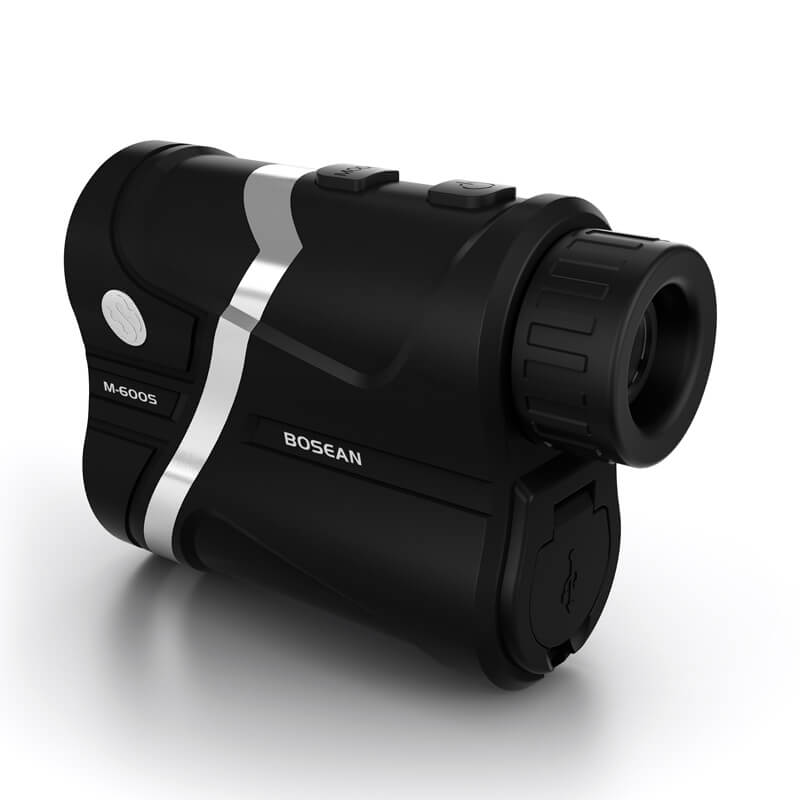

M Series Laser Rangfinder(Slope)

The M series laser rangefinder telescope uses a 7x24 large-caliber multi-coated optical lens to ensure sufficient light transmission rate. Available in 3 colors. Black, white, camouflage. Measurement Range 5-600m/1000m/1500m.

We provide laser rangefinder OEM/ODM service.


TAG:  Boseanhunting laser rangfinderlaser rangfindergolf laser rangfinder

Introduction

1.7X optical viewing system,
2.basic series has distance ,speed,height,angle measurement function, and the flagpole mode.
3.Slope measurement function is oplical for higher series.
4.Under the distance measurement and hoight measuroment mode, our device allow to show the horizontal distanoe and height resultt at the same time, which is very useful for playing golf.

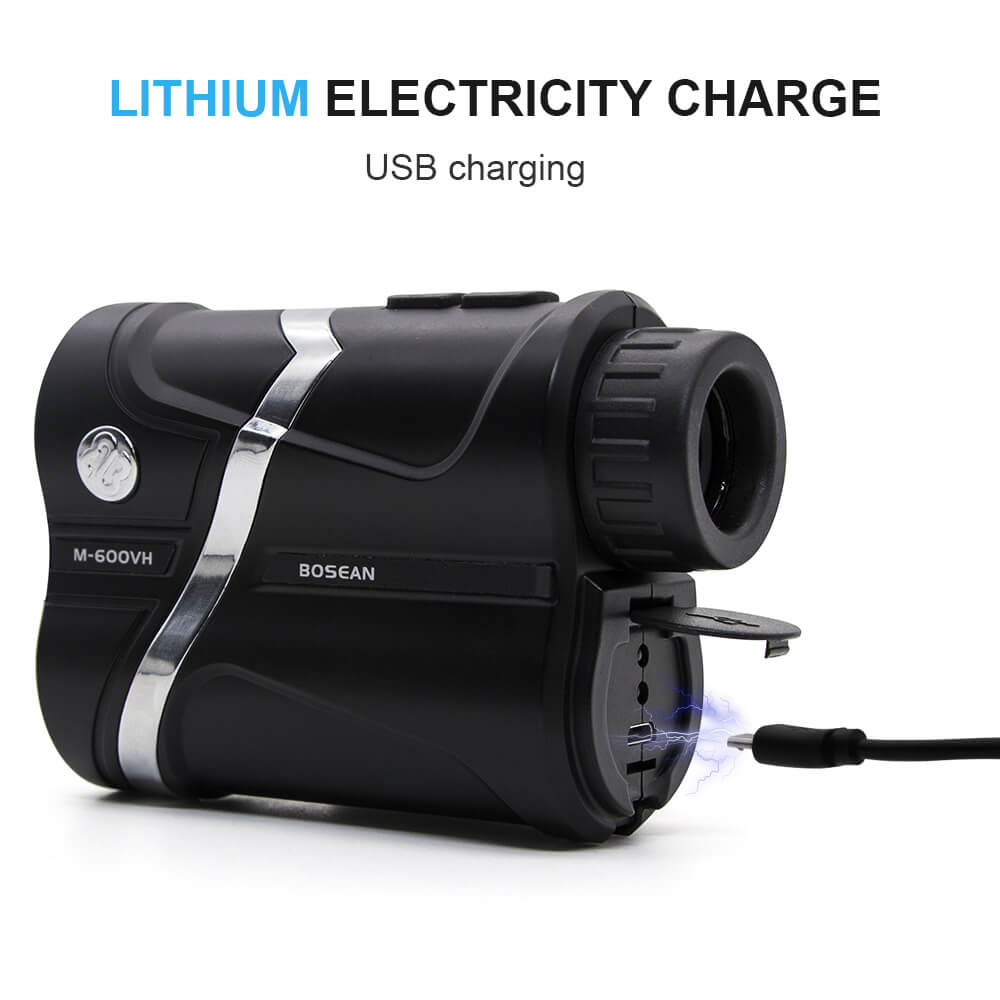

5. Rechargeable lithium battery,battery's life span Operating continuously for 5000 times.

TAG:  Boseanhunting laser rangfinderlaser rangfindergolf laser rangfinder
Specifications

Item

M Series High Accuracy laser distance meter digital laser rangefinder

Measurement Range

5-600m/1000m/1500m

Measurement Accuracy

±(0.5m±D*0.2%)
Measurement Speed Range 10-300KM/Н
Measurement Speed Accuracy 5KM/Н

Measurement Time

0.1- 0.3s

Operating Temperature Range

0°C ~ 40°C

Storage Temperature Range

-20°C ~ 50°C

Unit Selection

M/YD

Laser Light Type

905nm

Eye Relief

3.8mm

Objective Caliber

24mm

Eyepiece Caliber

3.8mm

Magnification

7X

Range of Anger Measurement

<±90º

Display Mode

LCD Screen

Field of View Angle

Diopter Adjustable Range

±3º

Measuring Standard Switch

Data clearing

Battery indicator

Signal strength indicator

Continuous measurement( max/ min)

Addition/ Subtraction

Volume/ Area/ Pythagorean measurement

Trapezoid Measurement

Triangular Area Measurement

Back Light

Laying off

Battery type

Rechargeable lithium battery

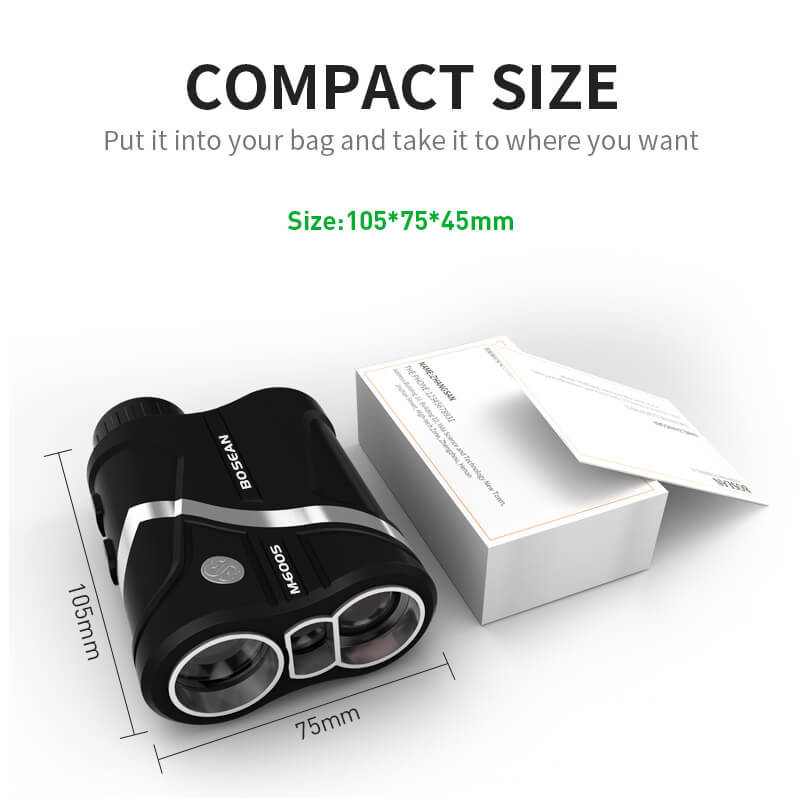

Size

40*105*73 mm
