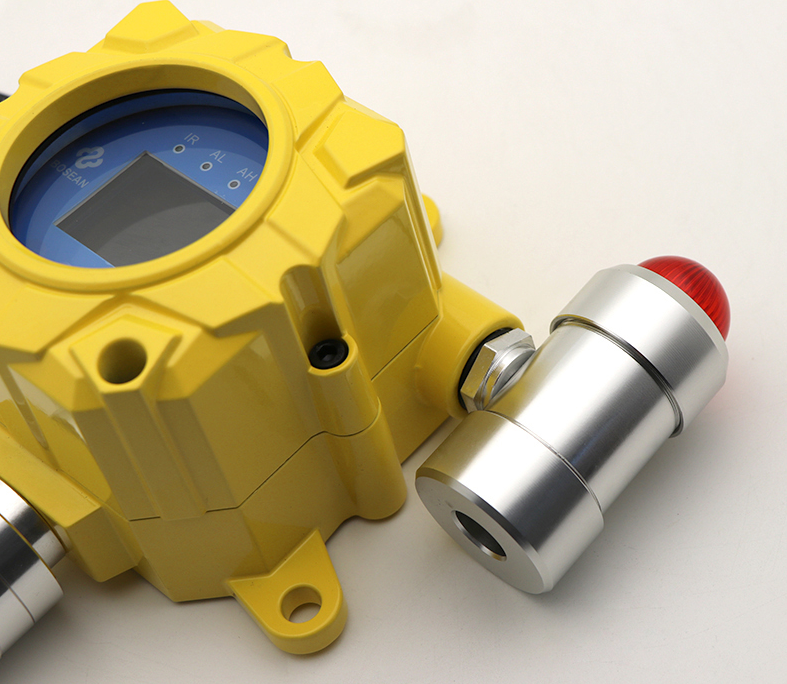

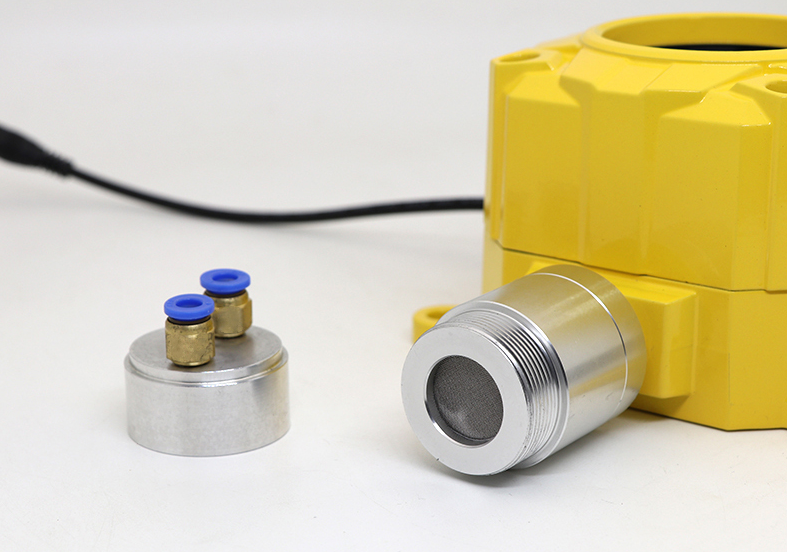

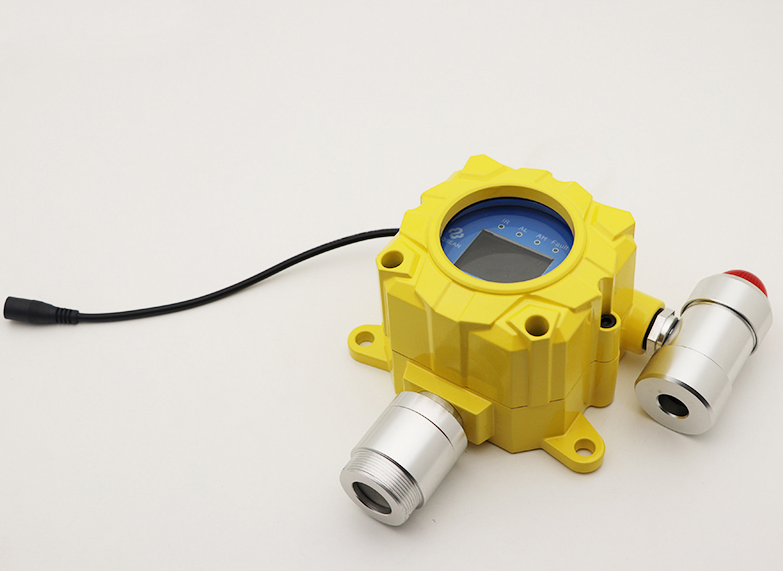

K-G60 Fixed gas detector

K-G60 fixed gas detector is a new type of gas detector developed in combination with the company's many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air.

Introduction
K-G60 fixed gas detector is a new type of gas detector developed and produced by the company's many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value. At the same time, the controller will give an audible and visual alarm, and promptly take measures to prevent the explosion and poisoning accidents, thus ensuring the safety of life and property.
The product has the advantages of stable signal, high precision, rapid response, long life, short polarization time, etc. It adopts industrial grade sensor, the instrument casing adopts explosion-proof explosion-proof structure design, 4-20mA standard signal or directly enters DOS system, which can be widely used. In the metallurgical, petroleum, chemical, municipal and other industries, it is at the leading level of similar products in China.

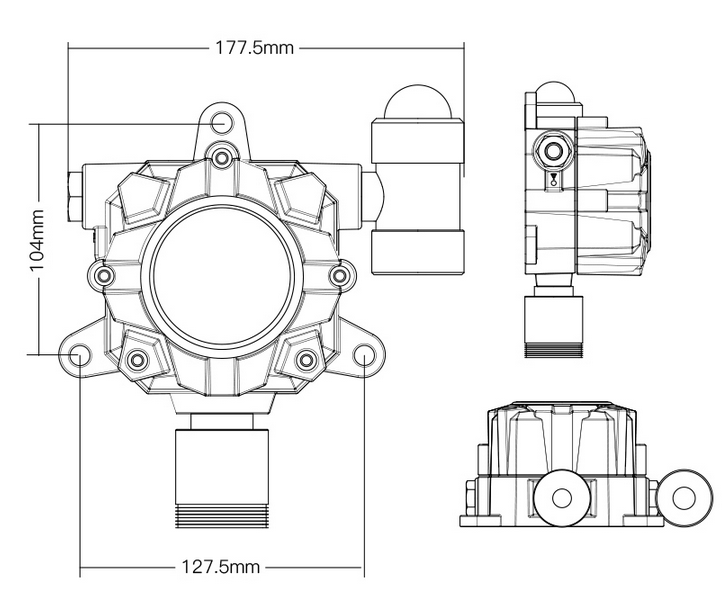

The outer casing is made of die-cast aluminum shell with flameproof structure. The groove of the upper cover is designed to lock the casing. The front of the sensor is designed as a downward structure to ensure good contact between the sensor and the gas. The inlet is made of explosion-proof waterproof joint.
Henan Bosean Electronic CO.,Ltd.Henan Bosean Electronic CO.,Ltd.
Henan Bosean Electronic CO.,Ltd.Henan Bosean Electronic CO.,Ltd.

Specifications
NO. gas  Range Detection Accuracy 90% Response Time Minimun Readout Alarm Set Point Low/High
1 PH3 0-2000ppm ±5%(F.S) ≤25s 0.01ppm 0.3/5ppm
2 O2 0-30%vol ±5% ≤15s 0.10% 19.5%/23.0%
3 EX 0-100%LEL ±5%(F.S) ≤5s 1%LEL 25.0%/50.0%LEL
4 CO 0-1000ppm ±5%(F.S) ≤25s 1ppm 50ppm/100ppm
5 CO2 0-5000ppm ±5%(F.S) ≤25s 1ppm 1000ppm/2000ppm
6 H2S 0-100ppm ±5%(F.S) ≤30s 1ppm 10ppm/20ppm
7 NO2 0-20ppm ±5%(F.S) ≤25s 0.1ppm 3ppm/10ppm
8 NO 0-250ppm ±5%(F.S) ≤60s 1ppm 25ppm/50ppm
9 SO2 0-100ppm ±5%(F.S) ≤30s 0.1ppm 2ppm/10pppm
10 CL2 0-20ppm ±5%(F.S) ≤30s 0.1ppm 1ppm/10ppm
11 NH3 0-100ppm ±5%(F.S) ≤50s 1ppm 25ppm/50ppm
12 H2 0-1000ppm ±5%(F.S) ≤60s 1ppm 50ppm/10ppm
13 HCN 0-50ppm ±5%(F.S) ≤200s 0.1ppm 10ppm/20ppm
14 HCL 0-20ppm ±5%(F.S) ≤60s 0.1ppm 5ppm/10ppm
15 CH4 0-100%LEL ±5%(F.S) ≤5s 1%LEL 25.0%/50.0%LEL
