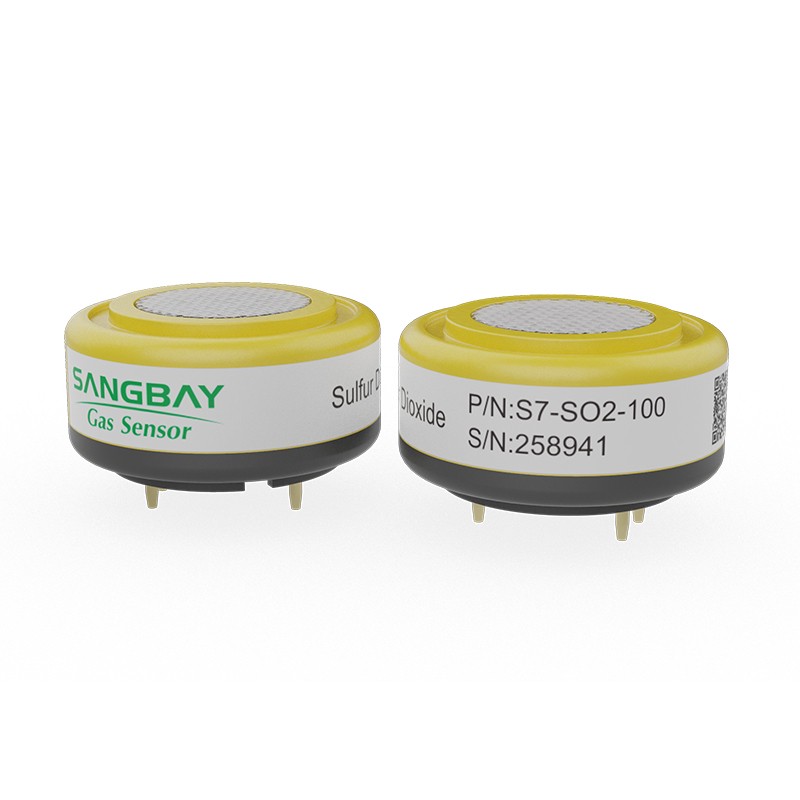

Sulfur Dioxide Gas Sensor
SO2 sulfur dioxide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with sulfur dioxide and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of sulfur dioxide. So the concentration of the target gas could be got by measuring the value of current.
TAG:   sulfur dioxide gas sensor so2 gas sensor Bosean sulfur dioxide portable gas detector
Introduction
Tips:For more parameter information, please refer to the latest manual provided by salesman.
Detection Gas | Sulfur dioxide (SO2) |
Detection Range | 0~20ppm |
Max range | 200ppm |
Sensitivity | (0.8±0.2)µA/ppm |
Resolution | 0.1ppm |
Response Time(T90) | ≤30S |
Bias Voltage | 0mV |
Load Resistance | 10Ω(recommended) |
Repeatability | <2﹪ Output value |
Stability(/month) | <2﹪ |
Output Linearity | Linear |
Zero drift(-20℃~40℃) | ≤0.2ppm |
Temperature range | -20℃~50℃ |
Humidity range | 15﹪~90﹪RH |
Pressure range | standard atmospheric pressure±10﹪ |
Lifespan | 2 years(in air) |
