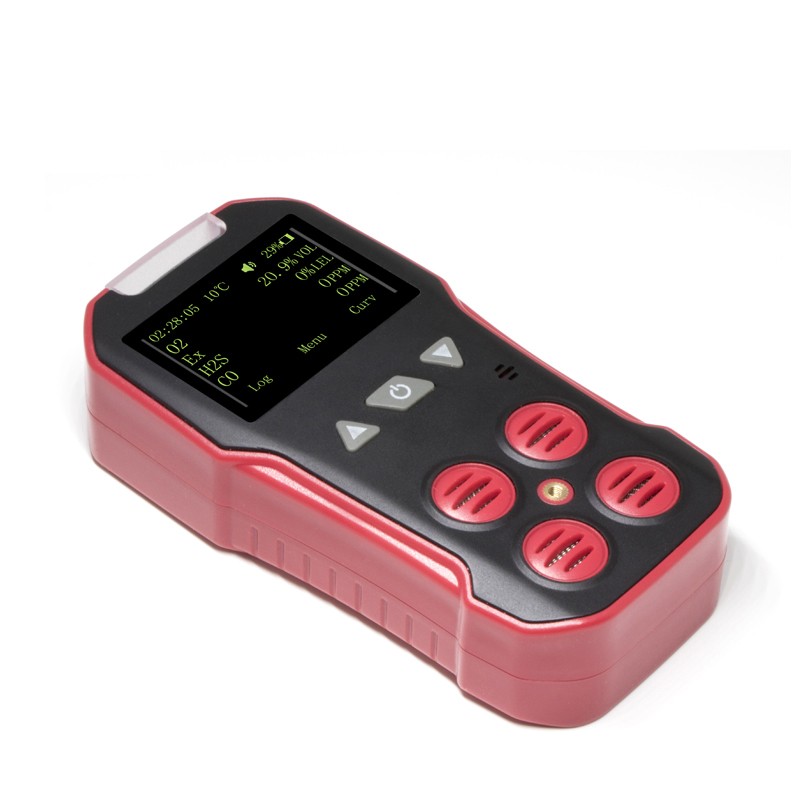

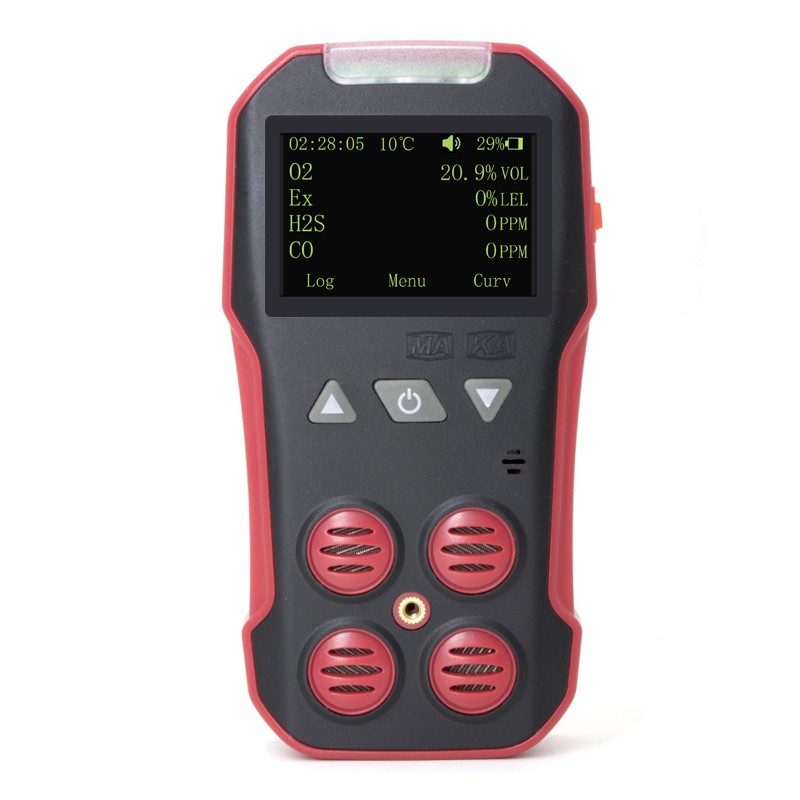

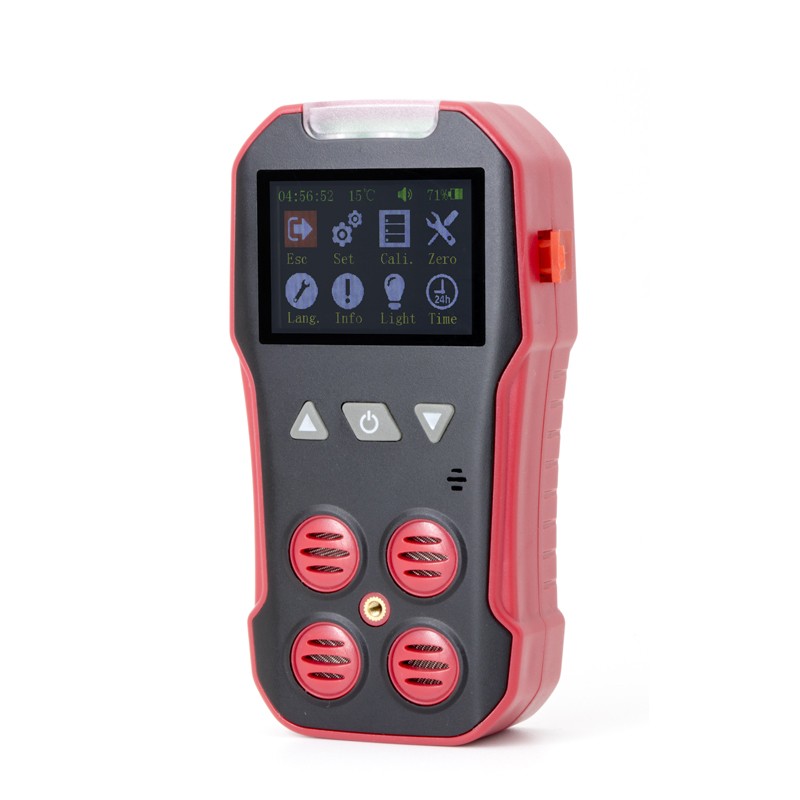

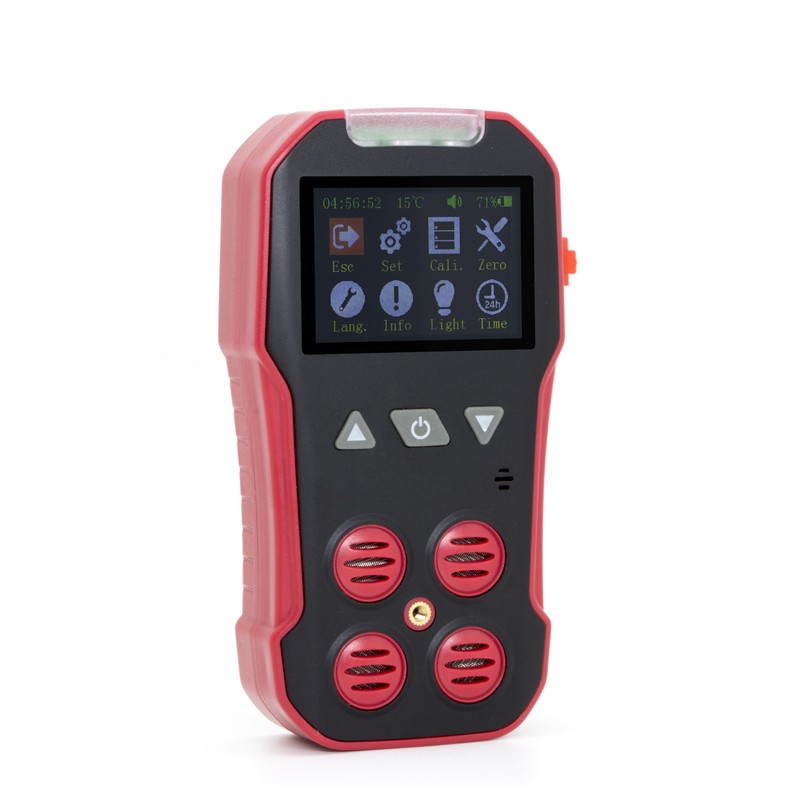

CD4 Mining Use Multi-gas Detector

The CD4 mining use multi gas detector adopts large-scale integrated circuit technology and complies with international intelligent technology standards. This detector uses catalytic and electrochemical gas sensors to detect gases through natural diffusion, with excellent sensitivity and repeatability. Convenient use and maintenance greatly meet the high reliability requirements of equipment for safety monitoring in industrial sites such as coal mines. The shell is made of high-strength engineering plastic, which has high strength, good hand feel, and is waterproof, dustproof, and explosion-proof.
This tester is widely used in industries such as coal mine, petroleum, chemical industry, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture, etc
. We provide gas detector OEM/ODMservice.

TAG:  multi gas detectorCD4mining use multi gas detectormining gas detector

Detecting gas:

CH4, H2S, CO, O2

*Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.

*32-bit built-in MCU, high reliability and self-adaptation ability.

*Full functions, easy operation.

*CSTN colorful LCD, more intuitionistic, abundant and clear indication.

*Compact design, easy carrying.

*High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

*500pcs data records, can be contact with computer via software. Can print the data records, can store data records, can make the data analysis.


≦±5% F.S.

Response Time



LCD displays real-time and system status;LED, audio and vibration alert for gas leakage, fault and low voltage.


plug-in electrochemical sensor

Alarm Type low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm

Working environment

-20℃~50℃, <95%RH (no dew)

Power Source

DC3.7V Li-on battery, 1800mAh

Charging time


Working time

≧8h continuously (without alarming)

Resolution 0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX)
Self-checking Function Self-checking Battery power, display, sensor, hardware failure

Gas Sensor Life

2 years

Explosion-proof grade


Protection Grade



Appr. 400g (with battery)


130mm×67mm×30mm(L × W × H)

TAG:  multi gas detectorCD4mining use multi gas detectormining gas detector
Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-100%LEL 1%lel 20%LEL 50%LEL
