K-10 Single Gas Detector (IP66)

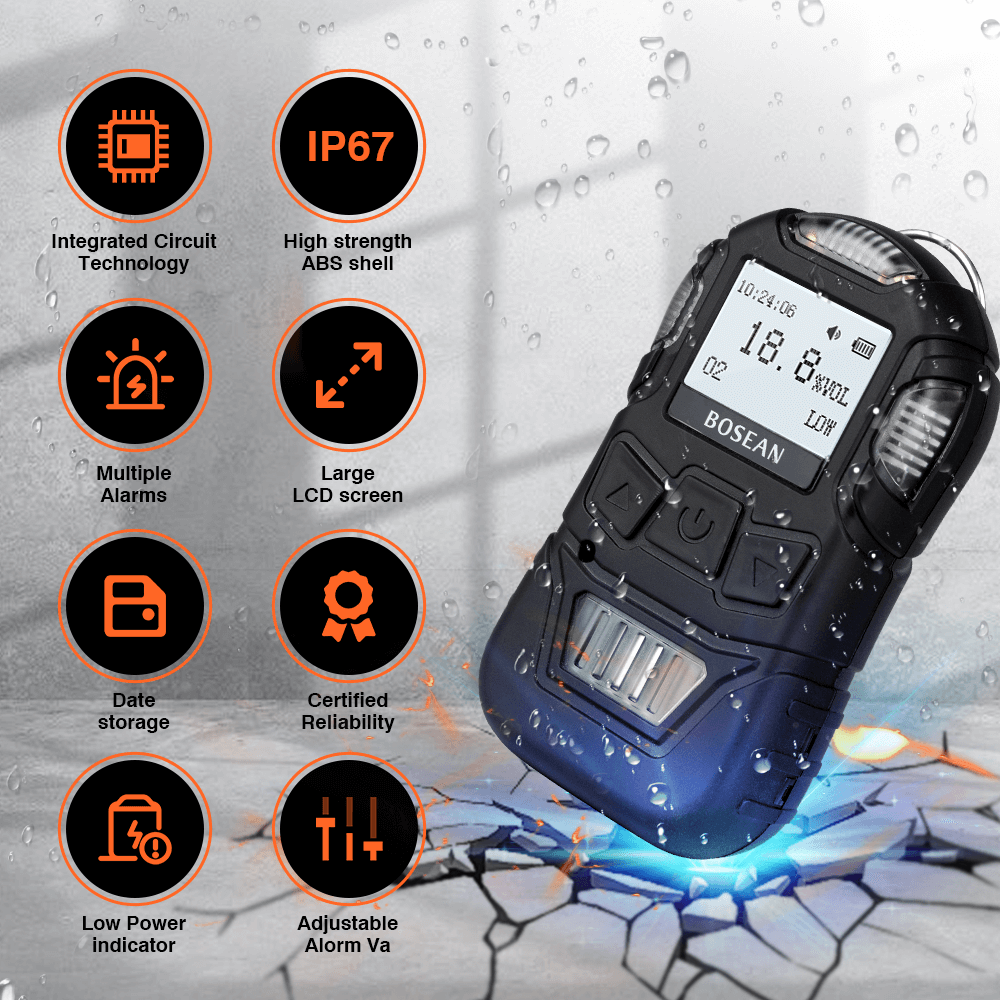

The K10 portable gas detector uses an advanced large-scale integrated circuit technology,Intelligent design technology and proprietary digital simulation hybrid communication technology gas detector. The detector uses a natural diffusion method to detect gas, and the sensitive element uses high -quality gas sensors. It has excellent sensitivity and excellent repetitiveness, convenient use and maintenance, which greatly meets the safety of the industrial sit.

We provide gas detector OEM/ODM service.


TAG:   K10 K10 gas detector IP66 gas detector h2s gas detector
Introduction

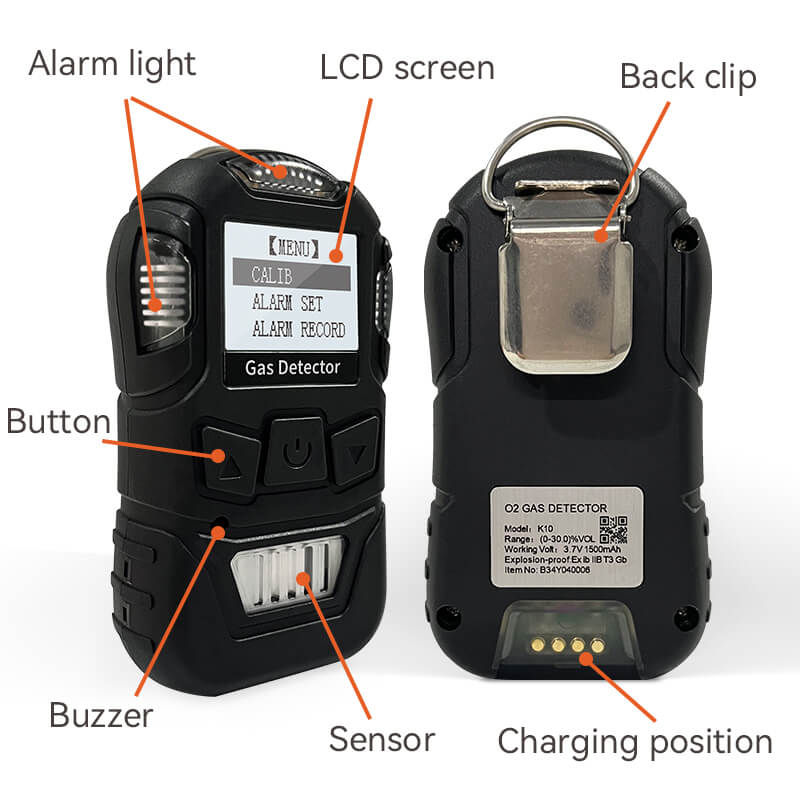

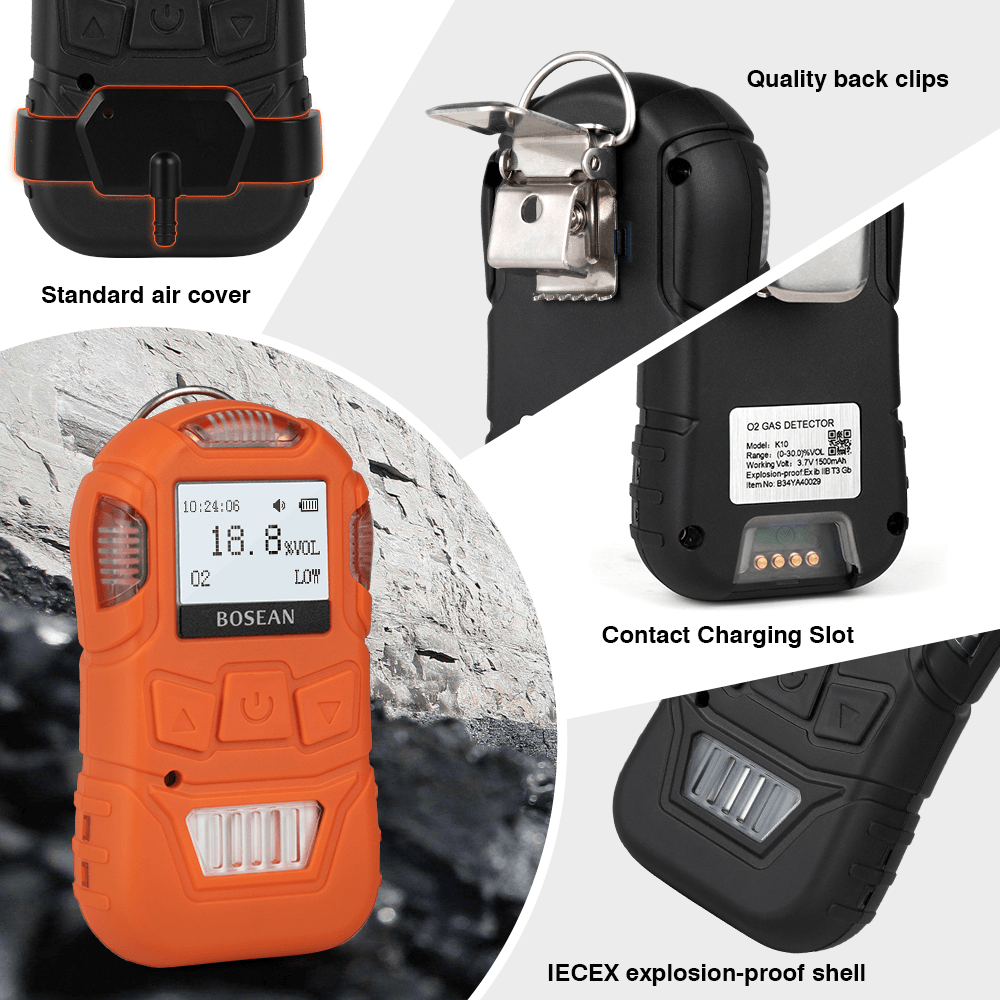

The shell is made of high -strength engineering plastics and composite non-slip rubber. High intensity, good feel, waterproof, dustproof, explosion -proof. This detector is widely used in oil, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture and other industries.

Sampling method

natural diffusion

Accuracy

≦ 5% F.S.

Response time

T<30s

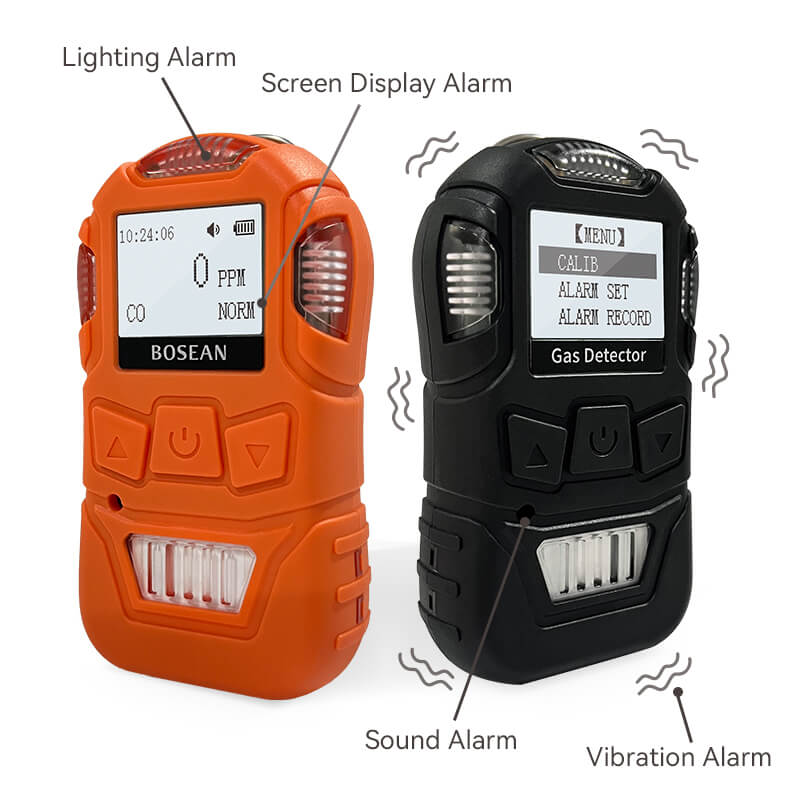

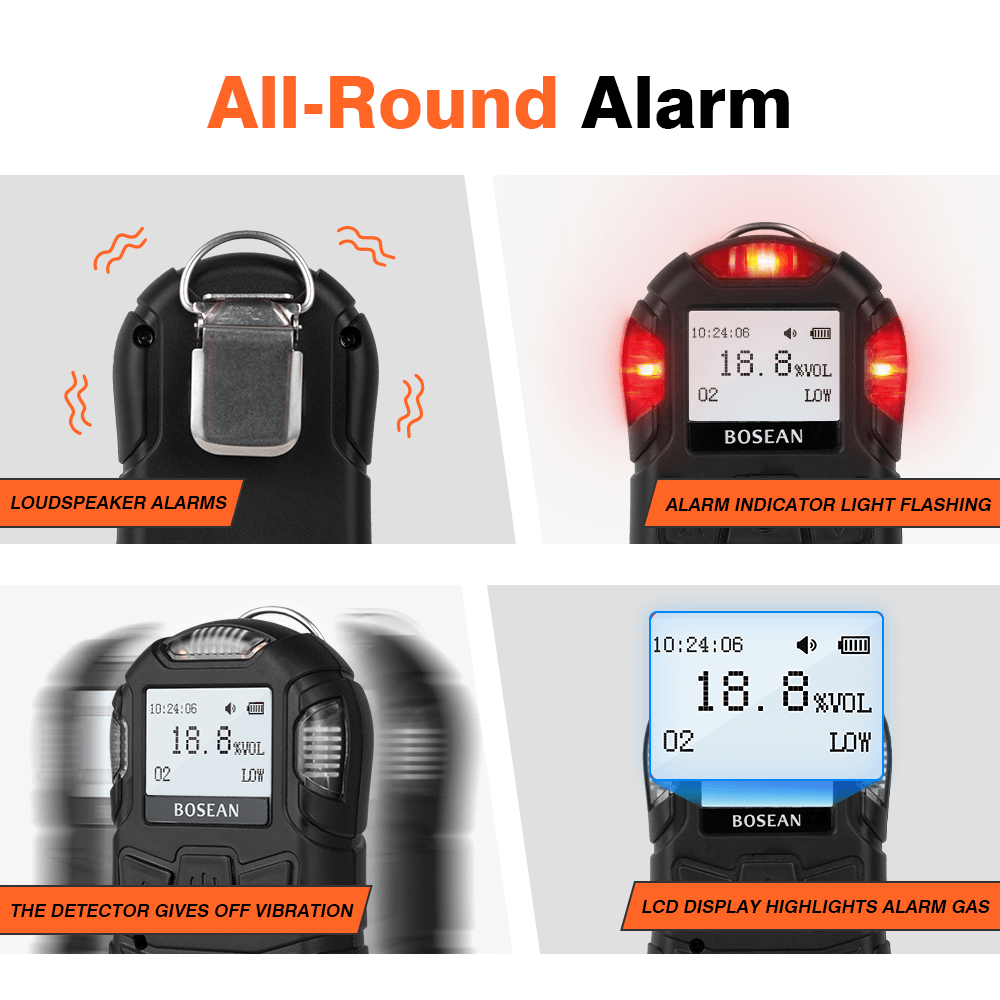

Alarm Method

 four alarm method: sound, vibration, light, display

Operating Environment

Operating temperature -10℃~55℃

Humidity

<95%RH non-condensing

Operating voltage

DC3.7V Li battery 1500mAh

Working time

≧8h continuously

Charging time

4h~6h

Sensor life

2 years

Protection category

IP66

Weight

about 130g (including battery but without accessories)

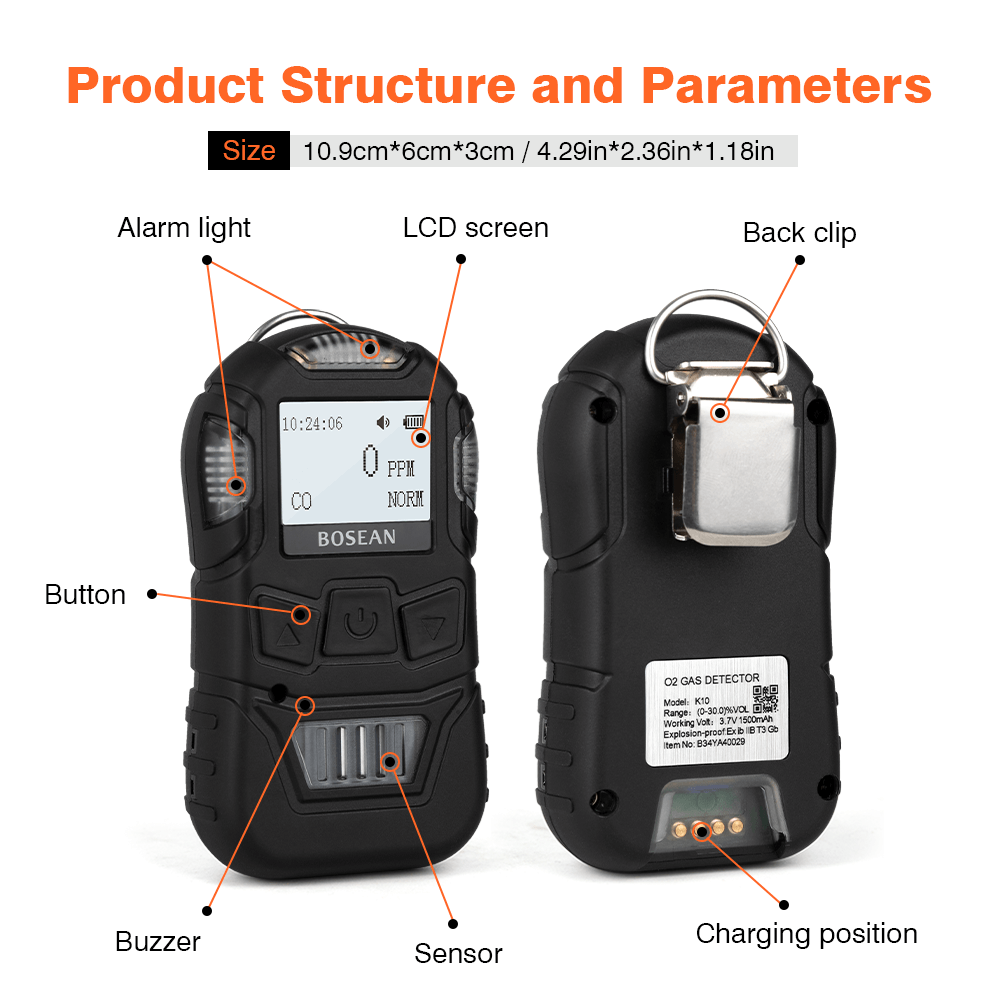

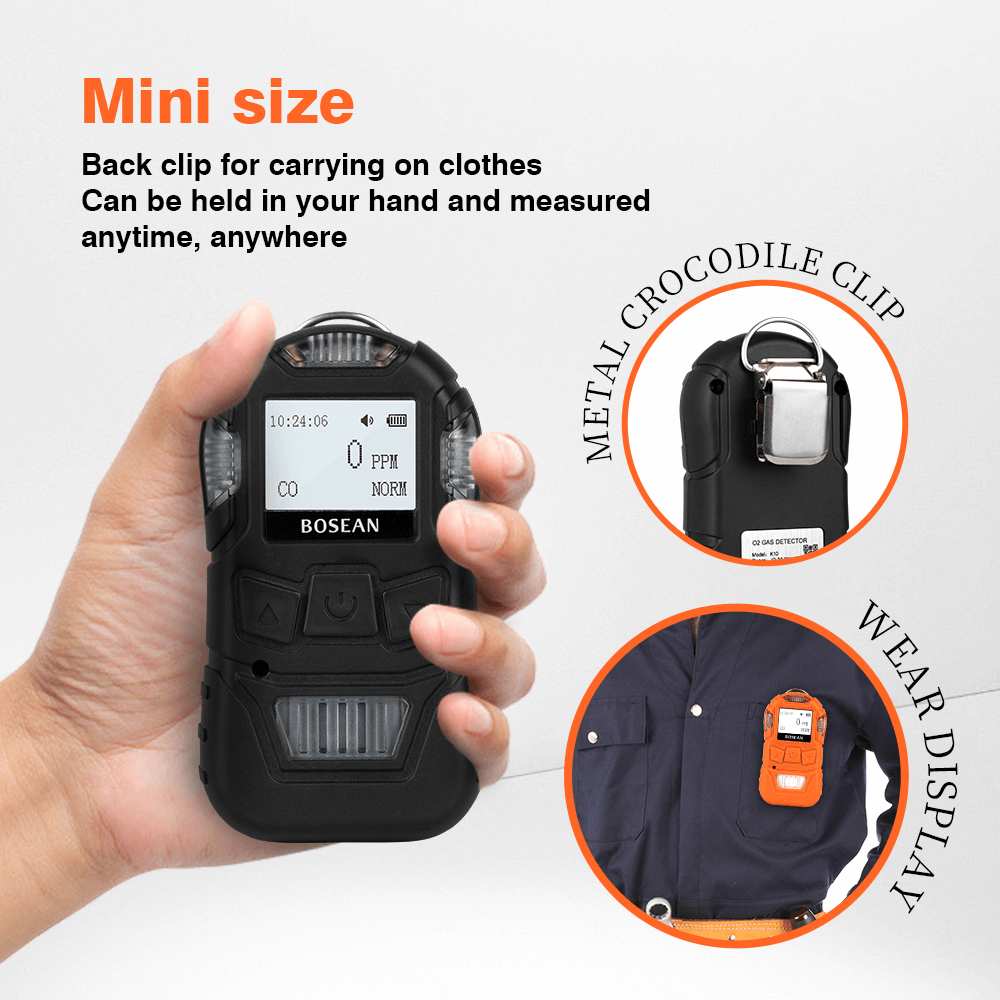

Dimension

109mm×60mm×30mm




TAG:   K10 K10 gas detector IP66 gas detector h2s gas detector
Specifications

Note: Not all gases and range are listed, if you need more information, please contact us.

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-100%LEL 1%lel 20%LEL 50%LEL
C2H4O 0-100ppm 1/0.1ppm 20ppm 50ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C3H8 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C2H5OH 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
NH3 0-100ppm 0.1/1ppm 20ppm 50ppm
CL2 0-20ppm 0.1ppm 5ppm 10ppm
O3 0-10ppm 0.1ppm 2ppm 5ppm
SO2 0-20ppm 0.1/1ppm 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5000ppm 1ppm/0.1%vol 1000ppm 2000ppm
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1/0.01ppm 10ppm 20ppm
HCL 0-20ppm 0.001/0.1ppm 5ppm 10ppm
CH2O 0-20ppm 1/0.1ppm 5ppm 10ppm
HF 0-100ppm 0.01/0.1ppm 2ppm 5ppm
C7H8/C8H10 0-20ppm 0.01/0.1ppm 5ppm 10ppm

Note: Not all gases and range are listed, if you need more information, please contact us.
