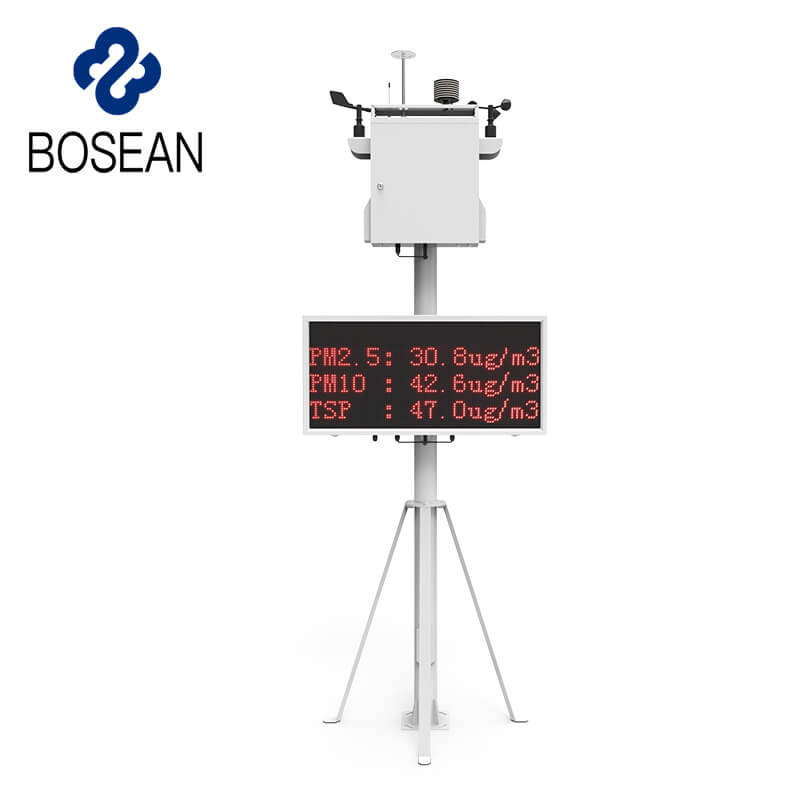

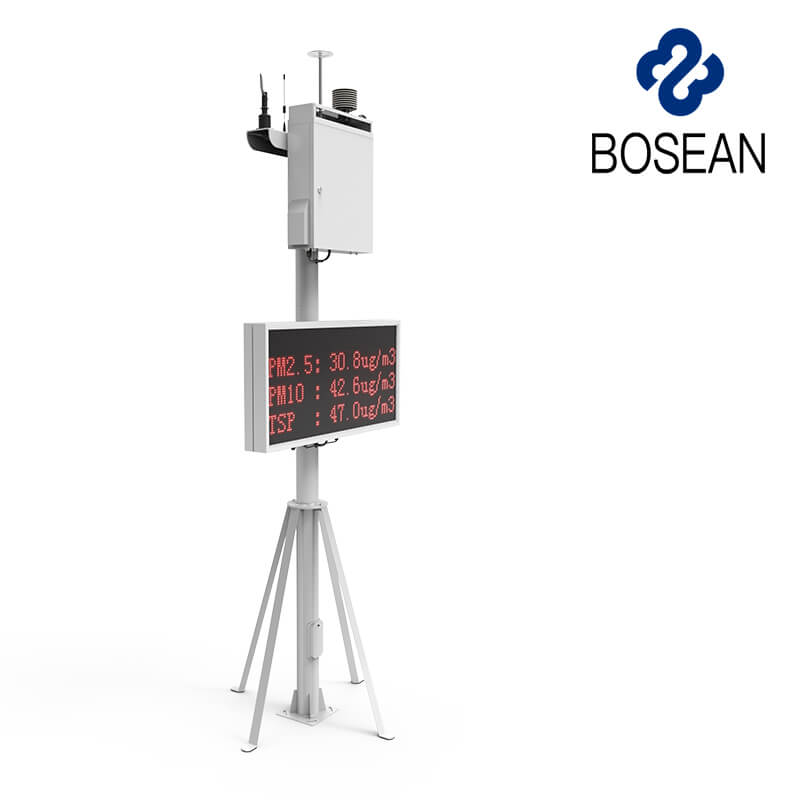

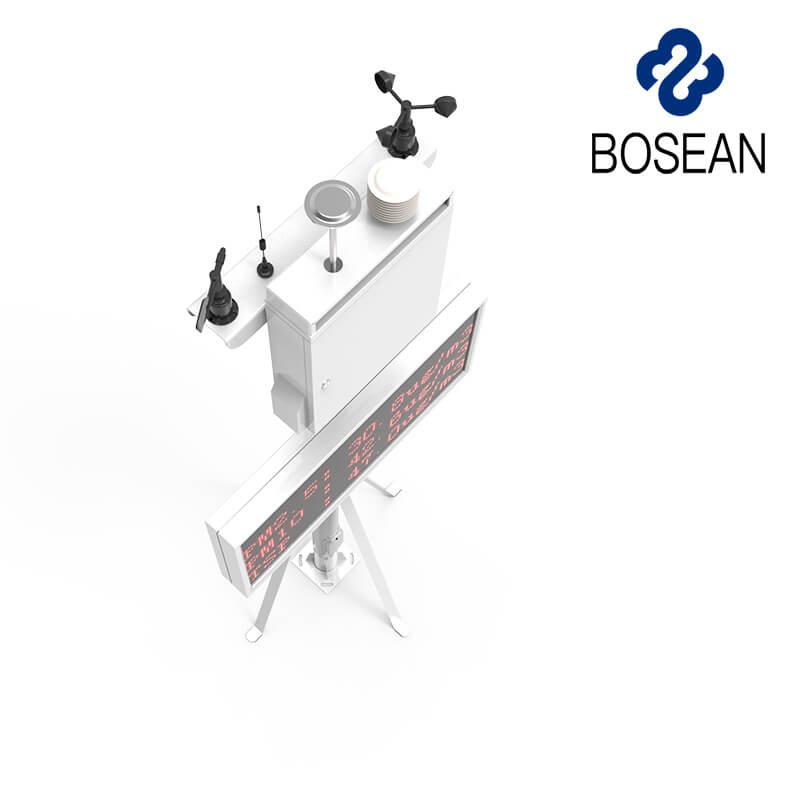

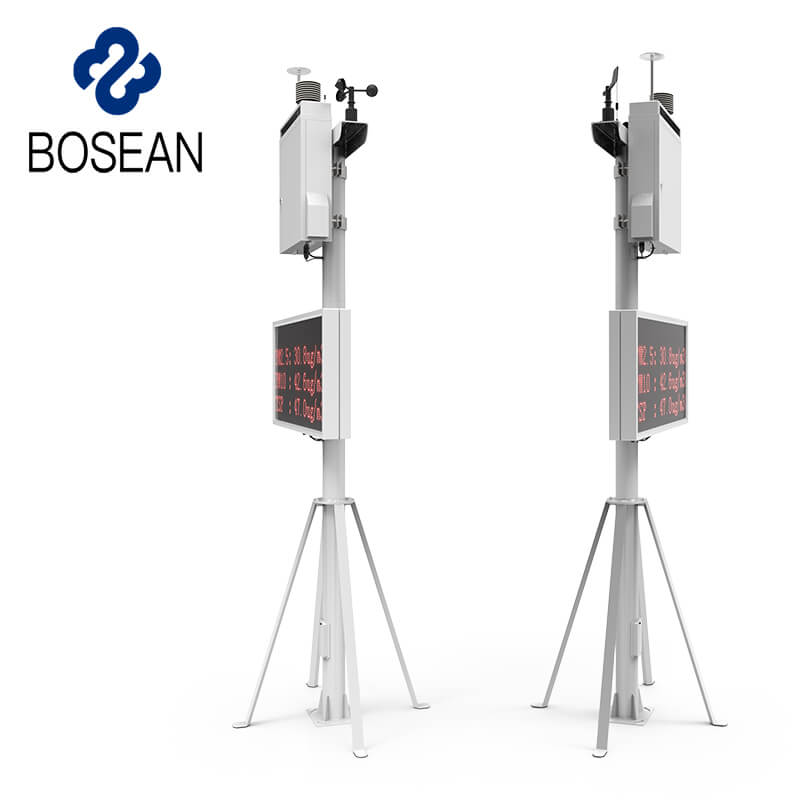

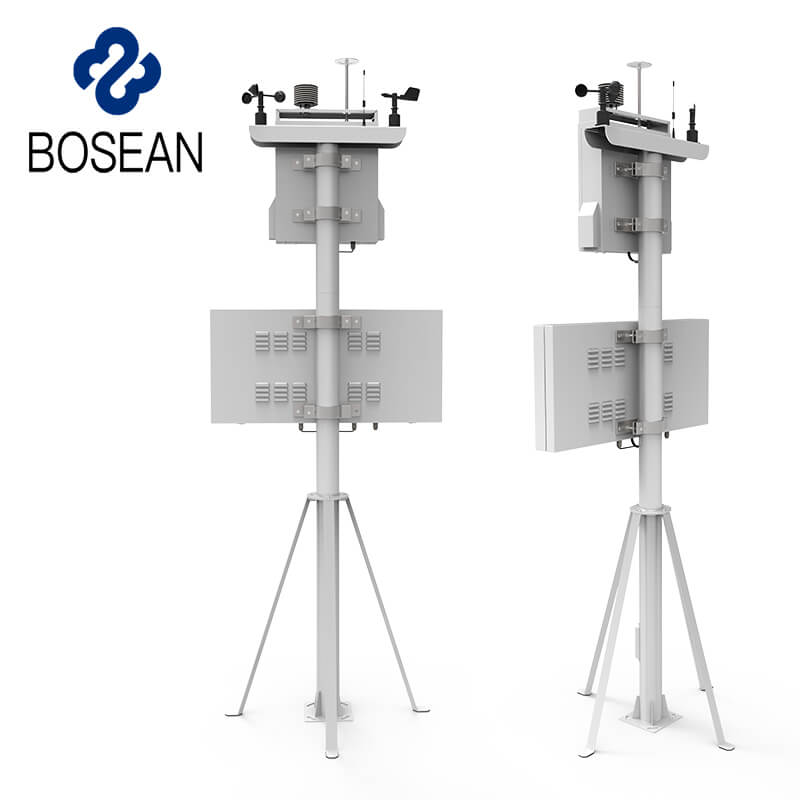

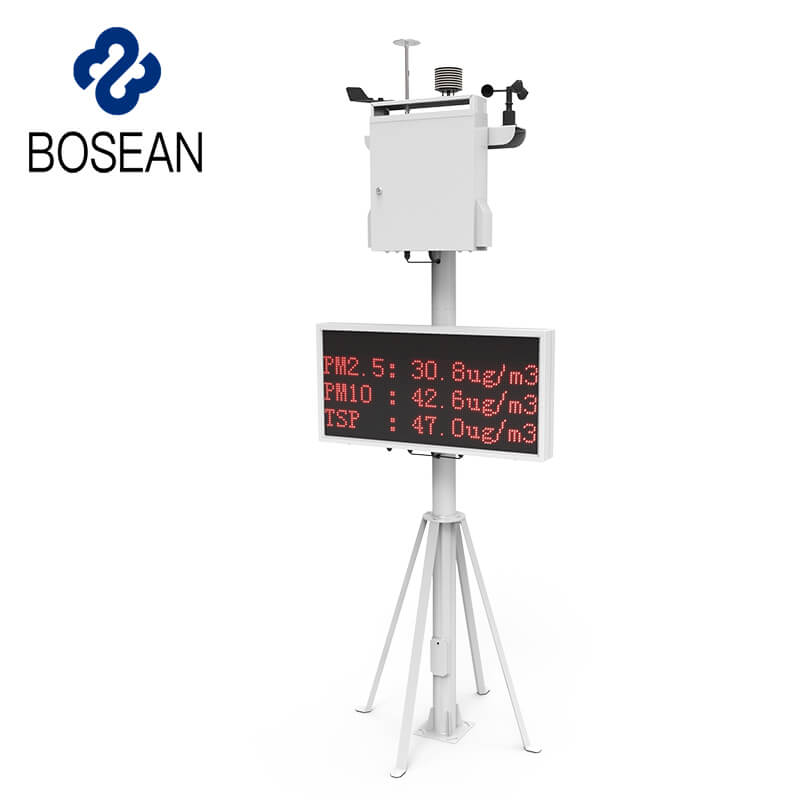

K-EP61 Dust On-line Monitoring System

The dust source has the characteristics of openness, multi-source space, extensiveness and randomness of emission. By introducing online monitoring system of dust, law enforcement departments can trace the source of dust pollution, conduct preliminary quantitative analysis of dust pollution degree, conduct remote monitoring of dust pollution violations, and provide more scientific technical support for effective control of urban dust pollution.

TAG:   dust on-line monitoring system outdoor dust concentration detector

The system is integrated particulate noise real-time monitoring, weather monitoring, Internet of things and cloud computing and other advanced technology into an organic whole, can be more accurate positioning the direction of dust pollution source, can online monitoring of various kinds of particles (contain TSP, PM10 and PM2.5) concentrations, possesses the characteristics of high concentration of alarm and can draw on monitoring and implement on-line monitoring for the unstructured sources dust pollution effect is remarkable.

General Features:
Monitored Parameters: PM2.5, PM10, TSP, temperature, humidity, wind speed, wind direction, atmospheric pressure, noise, light
Power supply: AC220V
Communication mode: Wired/wireless transmission
LED: 54*102cm
Equipment support: 2m/3m poling(can be selected)
Relay output: 3 wire, Connected to the secondary relay xxxxx
Watertight caisson: Used to install acquisition instrument or power system
systerm composition:
* Perception layer: online pollution source monitor, including particle concentration monitor, meteorological multi-parameter monitor, noise monitor and video monitoring camera, for particle concentration, meteorology!Parameters, noise and on-site video are monitored continuously and automatically online to realize real-time data reporting.
* Transmission layer: various monitoring data are transmitted by wired and wireless means.
* Platform layer: data service cloud platform, relying on the data of dust and noise monitoring platform under construction, carries out systematic analysis, provides cross-region, full-time and multi-level data mining and comparison, and provides data support for scientific haze control.
*Application layer: for different environmental protection bureau, construction site client system, realize web-based real-time monitoring of pollution sources online data, on-site video monitoring, pollution sources exceed the standard alarm, as well as various management and statistical analysis for different management.

TAG:   dust on-line monitoring system outdoor dust concentration detector

Component name




Temperature sensor

-45-80℃ 0.1℃ ±0.5℃

Humidity sensor

0-100% 1% ±3%

Wind speed sensor

0-60m/s 0.1m/s ±0.3m/s

Wind direction sensor

16 bearing ±3°

Noise sensor

30-130db 0.1db ±0.5%F.S

PM2.5, PM10, TSP

0-10000ug/m³ 1ug/m³ ±10%F.S

Atmospheric pressure

30-110Kpa 0.01Kpa /


1-65535Lux -45-80℃ /
