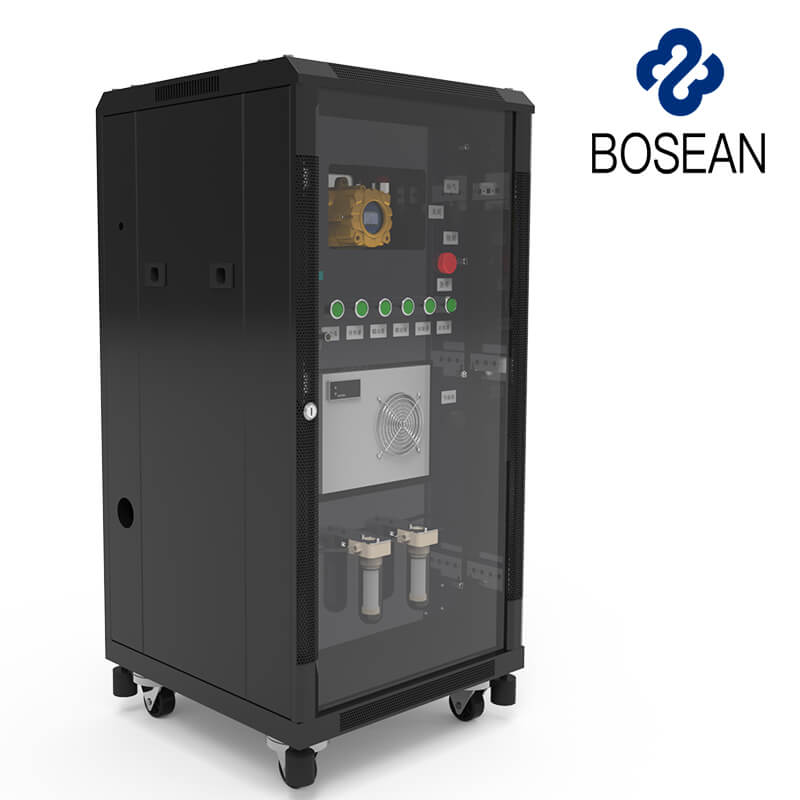

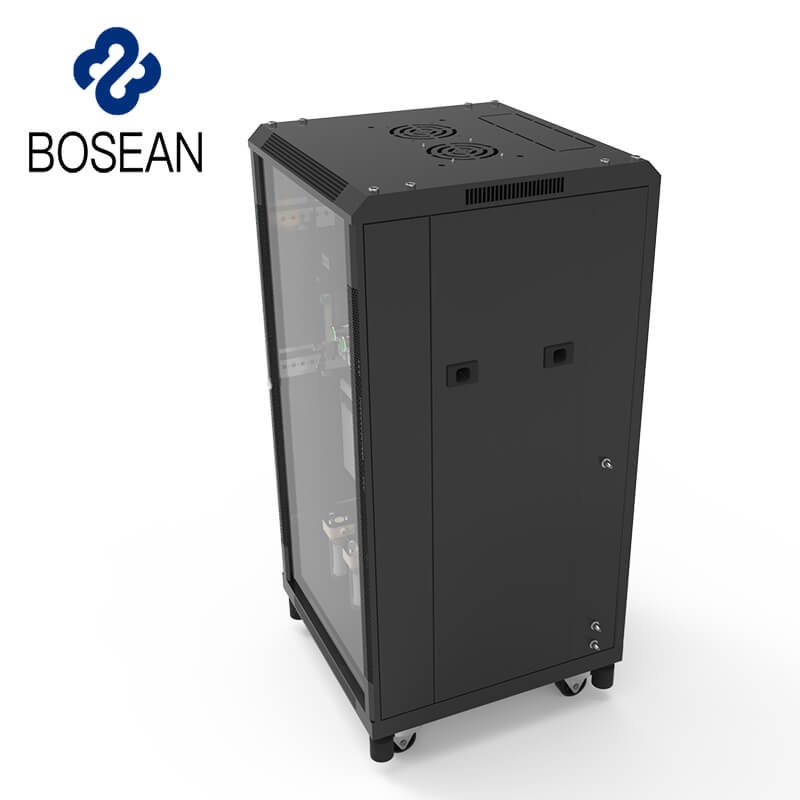

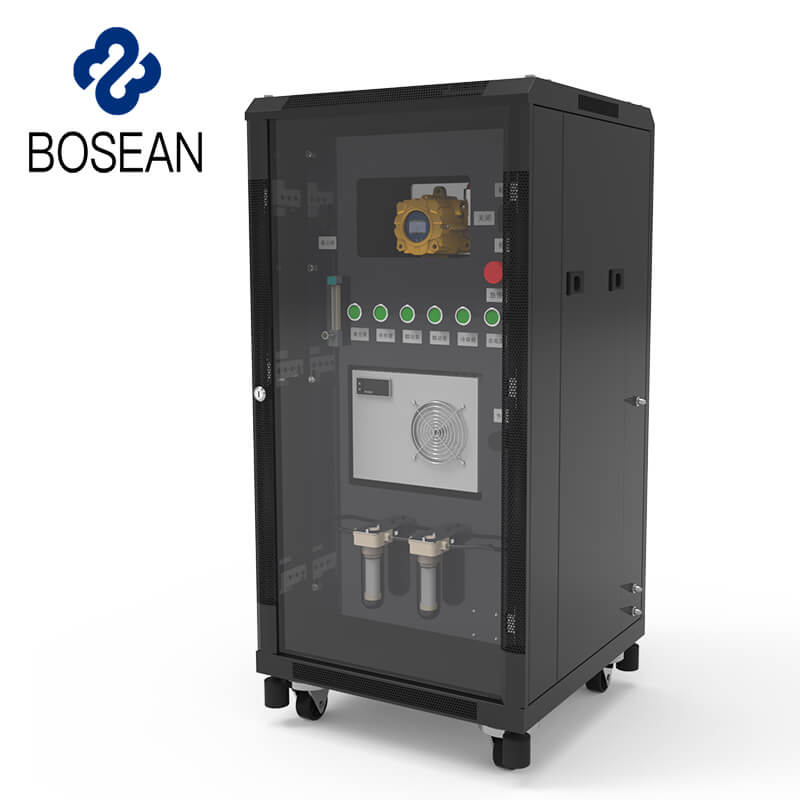

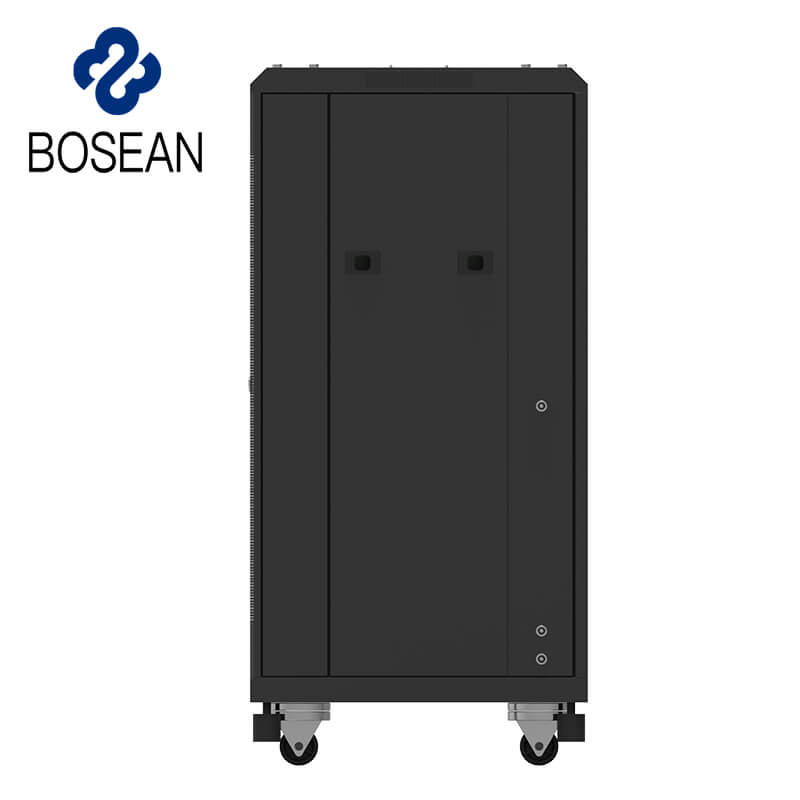

K-EP70 Online TVOC Monitoring System
K-EP70 can be used in any environment that needs to detect VOCs. This product has passed the national CCEP environmental protection certification.
TAG: tvoc monitoring systemK-EP90VOC Monitoring SystemK-EP70
Tel: 8615639095718
Email: info@bosean.com
The VOCs monitoring equipment sends the monitored data to the cloud through GPRS encryption. The cloud car be the cloud service platform of the environmenta supervision unit or the cloud service platform of the production unit. The cloud service platform can send data to the client mobile phone through the wireless network or the wired network, or to the data center for data analysis, or can be transmitted to the client PC for the customer to view or print data, wherein the system device The data transmission protocol to the cloud uses the HJ212-2017 protocol.
TAG: tvoc monitoring systemK-EP90VOC Monitoring SystemK-EP70
|
Detecting Gas |
TVOC (imported high performance PID sensor) |
Measure Range: |
0-100ppm |
|
Resolution |
0.1ppm | Indicative Error: | ≤10%F.S |
| Repeatability: | ≤3% | Zero Drift: | ≤5%F.S |
| Response Time | ≤20s | Temperature: | 10-40℃ |
| Humidity: | 20-90%RH | Protection Grade: | IP65 |
| Inclination Angle: | ≤45 | Insulation Resistance: | ≥20M |
Support data upload and docking, (Optional, support HJ212-2017 datatransfer of pollution source Online detection system)
