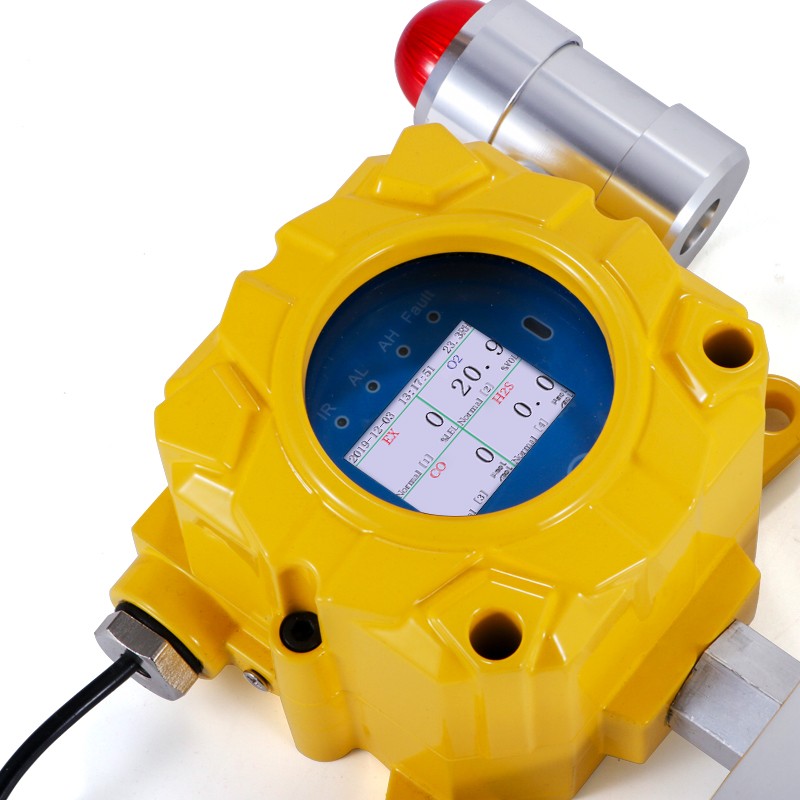

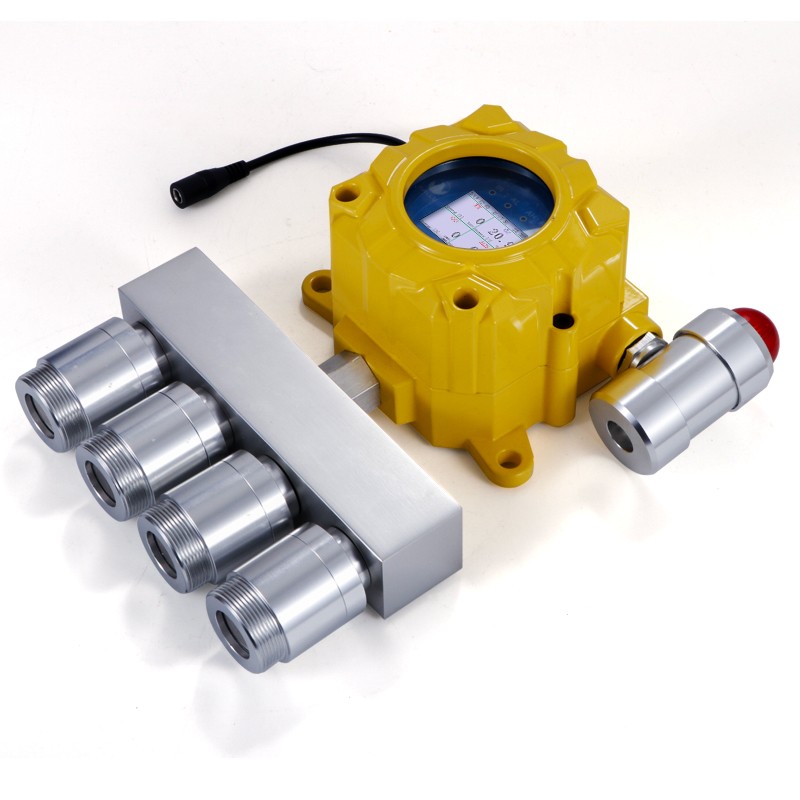

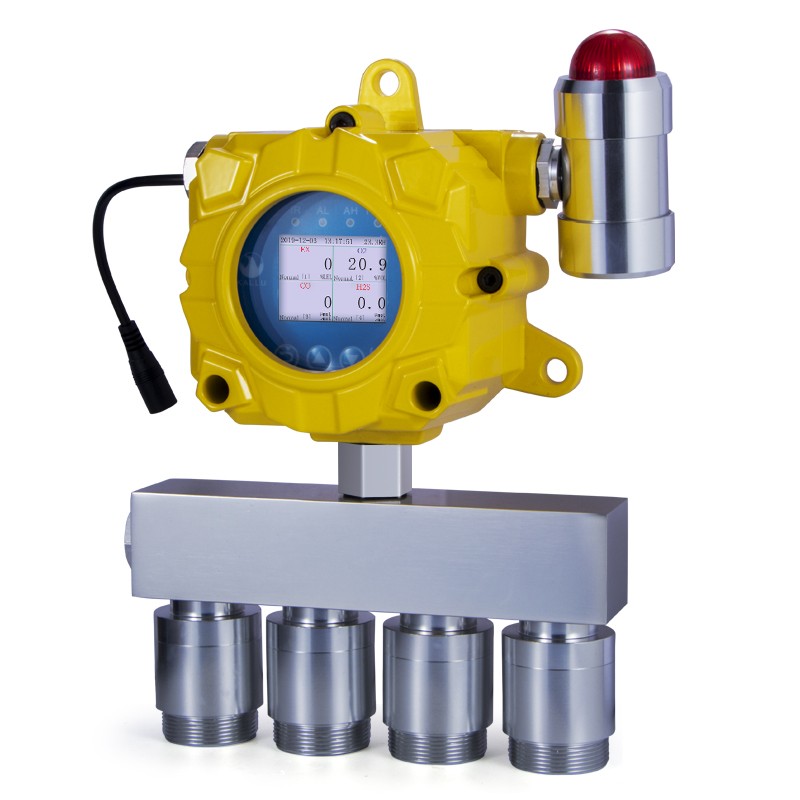

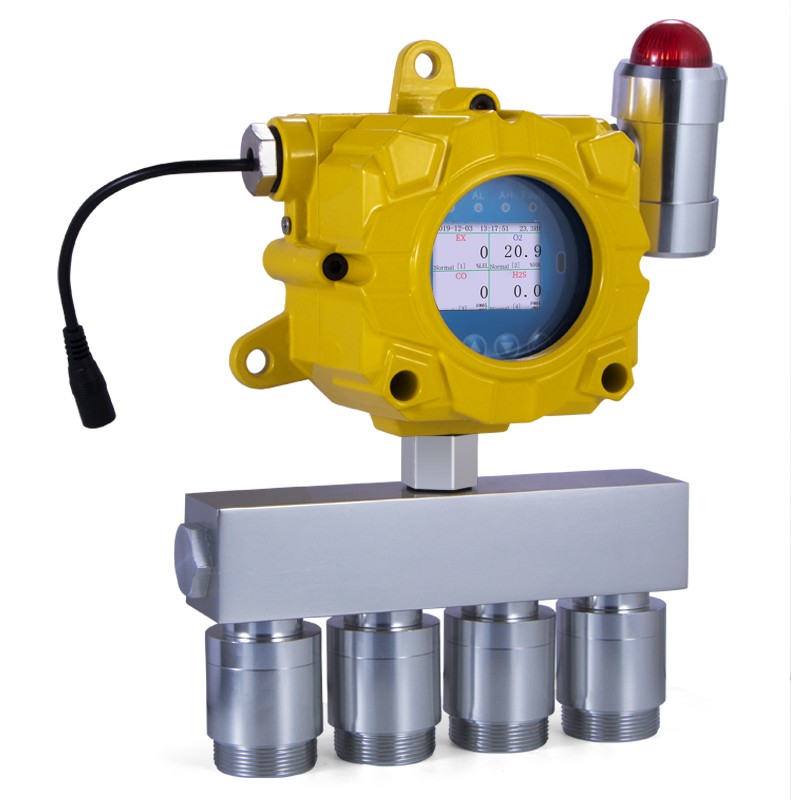

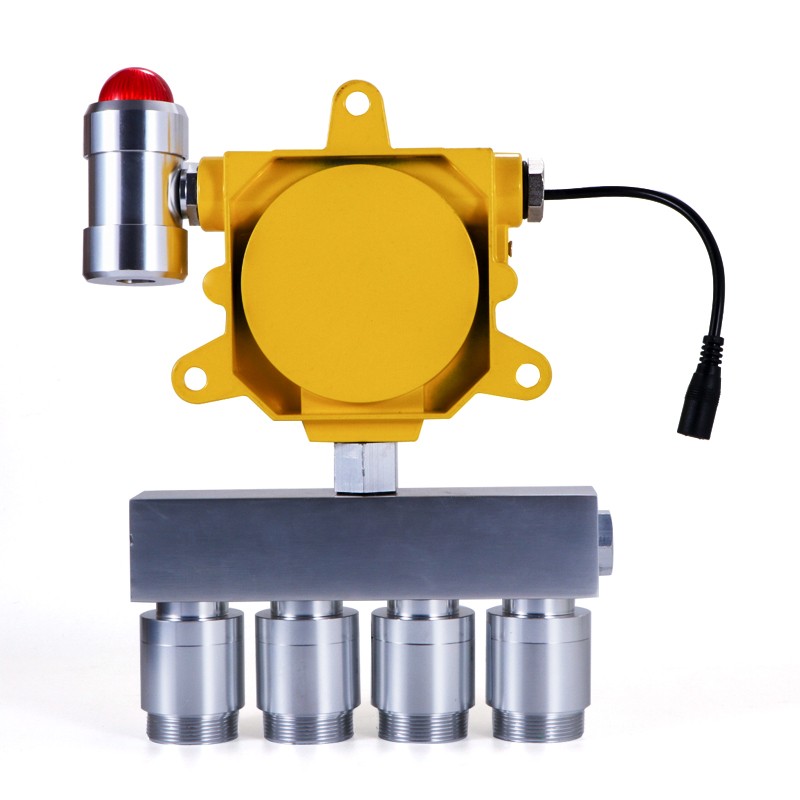

K-G60(EX,O2,CO,H2S)Fixed Gas Detector

Multi 4in1 fixed gas detector, can detect EX,O2,CO,H2S (support other gas combinations),have ATEX, CE, FCC, ROHS, SIL certification.

We provide gas detector OEM/ODM service.


TAG:  Boseanfixedgasdetectormulti 4 in1fixed gas detectorK-G60

Introduction

With all advantages: accurate, strong, easy to operate, safe!
*Specially made shell,Authority certified
Thickened shell, encrypted screw port, special alloy material, national professional organization certification, sealed off any fire source, waterproof, dustproof and explosion-proof performance, overall indestructible, and super high corrosion resistance in harsh environments.
*Powerful
High-efficiency ultra-optimized computing system, coupled with cutting-edge semiconductor nano ultra-low power 32-bit microprocessor and 24-bit ADC data acquisition chip, Seiko Heart creates a new standard of reliability and durability, giving you a new stability experience.
*High-quality industrial grade sensors
Superior sensors are the key to K-G60(EX,O2,CO,H2S)'s data accuracy and long life. Every sensor must go through supplier selection, sensor model selection, market reputation inspection, storage quality inspection, workshop testing and other layers before entering the production line. Levels to ensure their quality.
*Standard RS485 output is widely compatible
Standard MODBUS RTU protocol is standard, which is generally compatible with the popular gas alarm control equipment on the market, and the signal transmission distance is up to 1 km. The installation and wiring are simple and the operation range is large, flexible and convenient.
*Real-time data on-site display
2.0-inch high-definition backlight multi-parameter display screen is selected, and the real-time concentration of each gas can be checked at any time on the spot.
*Different alarming method, keeping security
all four kinds of measured gases can be set with two different warning alarm levels: high and low, making two safety levels guarantee for the site.


TAG:  Boseanfixedgasdetectormulti 4 in1fixed gas detectorK-G60
Specifications
Gas type

EX

O2

CO

H2S

Range

0-100%LEL

0-30%vol

0-1000ppm

0-100ppm

Resolution

1%LEL

0.1%vol

1PPM

1PPM

Sensor type

support electri-chemical, Catalytic ,semi-conductor, PID, infrared sensors

Detection method

diffusion, pump

Installation

wall mounted, pipe line (Thread size: G1/2)

Working voltage

DC(24+-3.6)V   power: 1.6W

Response time

≦30s (T90)

Deviation

±3%FS

Repetition

≦2%

Relay

two relay output, free contact: 30VDC 1A/125VAC 0.3A

Degree of protection

IP65

Explosion-Proof

Ex d II T6 GB

Shell material

Die-casting aluminumExplosion-proof and anti-corrosion

Thread size

M20X1.5 , G1/2

Dimension

261*177*90mm  cable: >4x1.5mm2 shielded cable

Working temperature

-10℃-50℃

Working humidity

≦95% RH, no condensation

Working pressure

86-106Kpa
