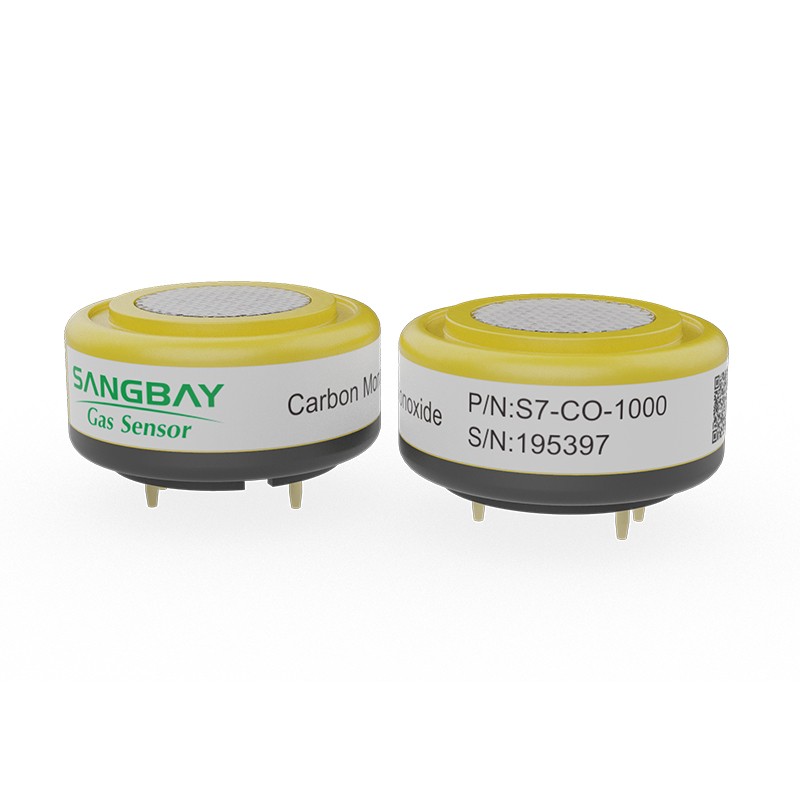

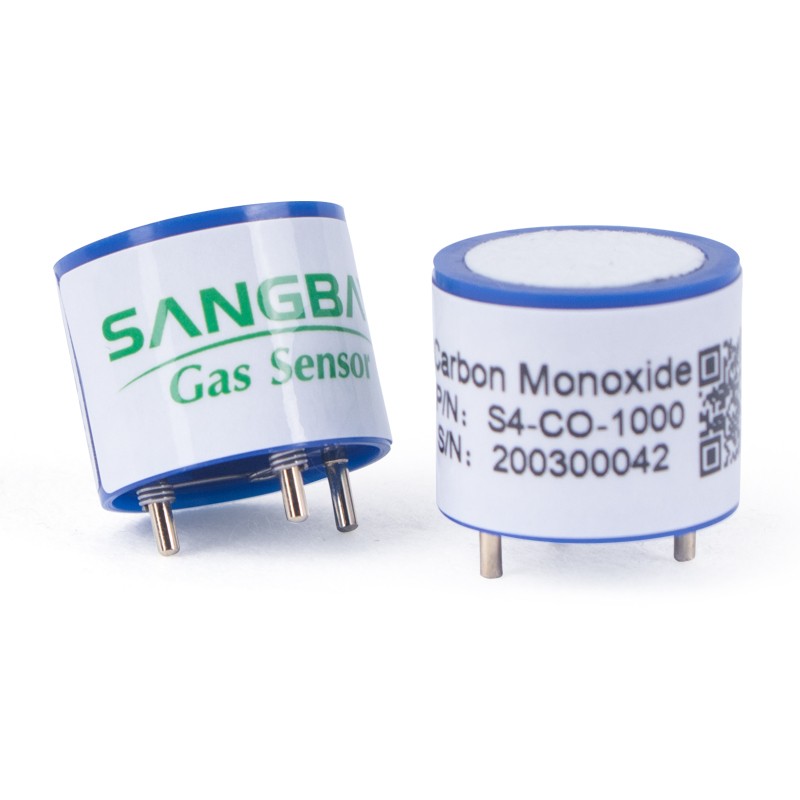

Carbon Monoxide(CO) Sensor
Bosean produce carbon monoxide sensor, industrial CO sensor, using fuel cell / electrochemical working principle. It is used for carbon monoxide detection in industrial occasions such as petroleum and petrochemical occasions, metallurgy, mine and environmental protection.
TAG:  Bosean co sensor carbon monoxide sensor
Introduction
Carbon monoxide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with carbon monoxide and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of carbon monoxide. So the concentration of the target gas could be got by measuring the value of current.
Detection Gas | Carbon monoxide(CO) |
Detection Range | 0~1000ppm |
Max Range | 1500ppm |
Sensitivity | (0.080±0.02)µA/ppm |
Resolution | 1ppm |
Response Time(T90) | ≦25S |
Bias voltage | 0mV |
Load Resistance (Recommended) | 10Ω |
Repeatability | <2﹪ Output |
Output Linearity | linear |
Stability(/month) | <5﹪ |
Zero drift (-20℃~40℃) | 9ppm |
Temperature range | -20℃~50℃ |
Humidity range | 15﹪~90﹪RH |
Pressure range | Standard atmopheric pressure ±10﹪ |
Lifespan | 2years(in air) |
Tips:For more parameter information, please refer to the latest manual provided by salesman.
