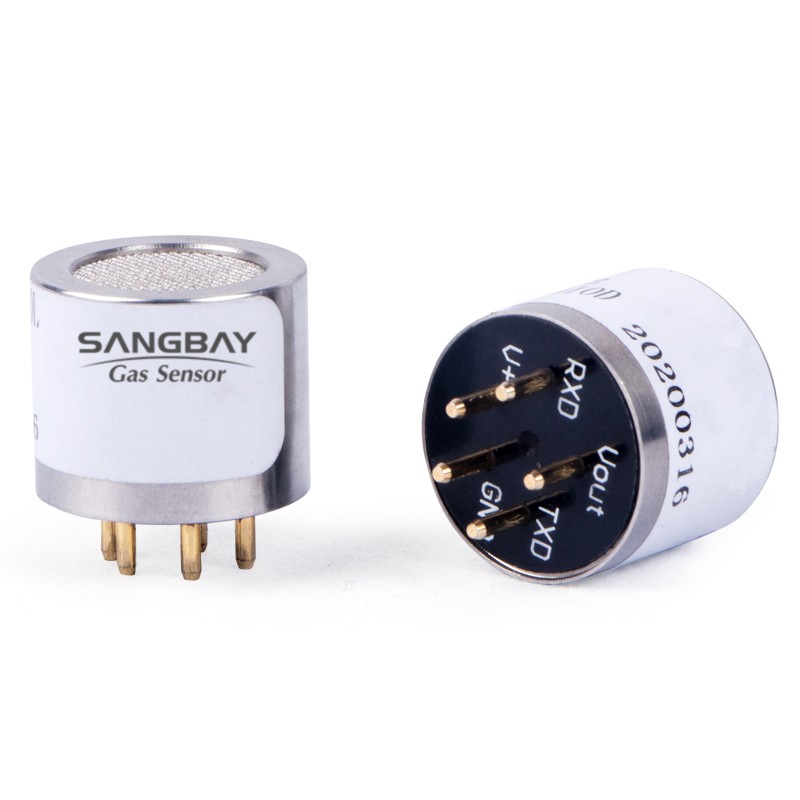

CH4 Sensor

CH4 gas sensor is a dedicated intelligent infrared gas sensor (hereinafter referred to as the sensor), using the non-dispersion-infrared (NDIR) principle to detect the presence of hydrocarbon combustible gas in the air, with good selectivity, no oxygen dependence, stable performance, long life: built-in temperature compensation.The sensor is a compact high performance sensor which combines mature infrared absorption gas detection technology with micro-machining and sophisticated circuit design.Easy to use, can be used directly to replace the catalytic combustion components, widely used in the presence of flammable, explosive gas in a variety of occasions.


TAG:   ch4 sensor ch4 gas detector Bosean gas detector manufacturer
Introduction

The sensor features high sensitivity, high resolution, low power consumption and fast response time.

UART, analog voltage and other output modes are provided.

Temperature compensation, excellent linear output.

Excellent stability and long service life.

Resistance to water vapor interference, no poisoning.

The catalytic combustion principle sensor can be directly replaced.

Detection Gas                                         CH4
Working Voltage 3.6~5V DC
Average Current <85 mA
Interface Level 3.0V
Detection range 0-10%vol Optional
Output Signal UART
0.4~2V
Warm-up time 3 min
Response time T90<30s
Working Temperature -20°C ~60°C
Working Humidity 0~95%RH(no condensation)
Sizes Φ20x21.4mm
Weight 35g
Lifetime >5 years
Defense Grade IP54
