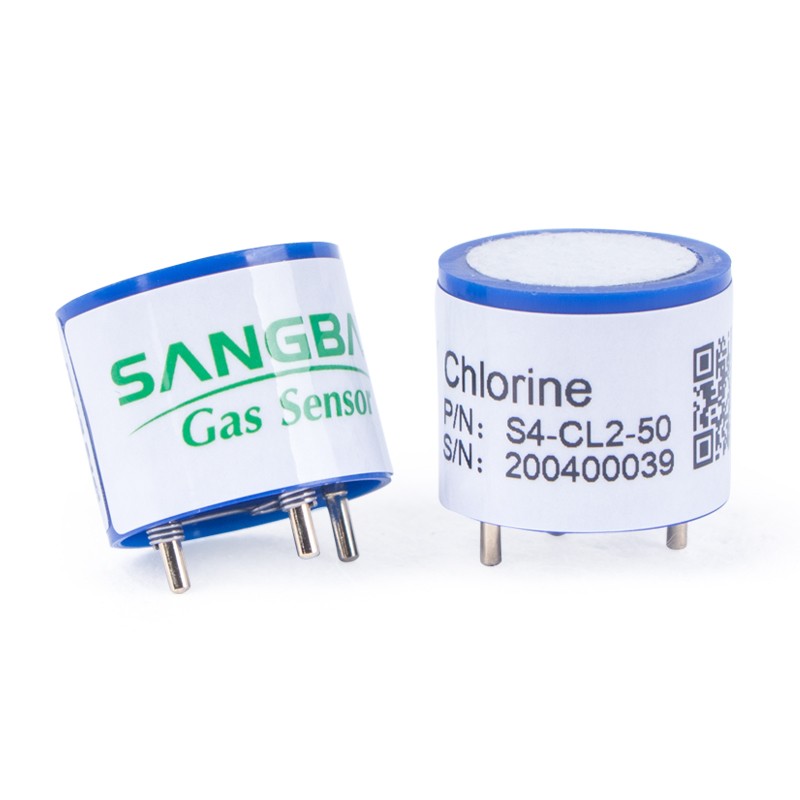

Chlorine Sensor

Chlorine gas sensors operate using proven fuel cell technology. The Cl2 range provides OEMs with reliable sensors for use in a number of high volume applications. Strong signal levels combined with low zero current allows resolution to 20ppb and an operating range from +0 to 20ppm. The sensors are suitable for inclusion in fixed installation sensing heads and portable safety instruments.


TAG:   chlorine sensor cl2 sensor chlorine detector
Introduction
*Temperature range: -20° C to 50° C
*Range: 20 ppm limit of performance warranty
*Sensitivity: -600 to -950nA/ppm in 10ppm Cl2
*Overgas range: 60 ppm for stable response to gas pulse
*Response time t90 from zero to 10ppm Cl2 (33Ω load resistor)
*Resolution: RMS noise (ppm equivalent) (33Ω load resistor)
*Operating life: > 24 months until 80% original signal (24 month warranted)

TAG:   chlorine sensor cl2 sensor chlorine detector
Specifications
