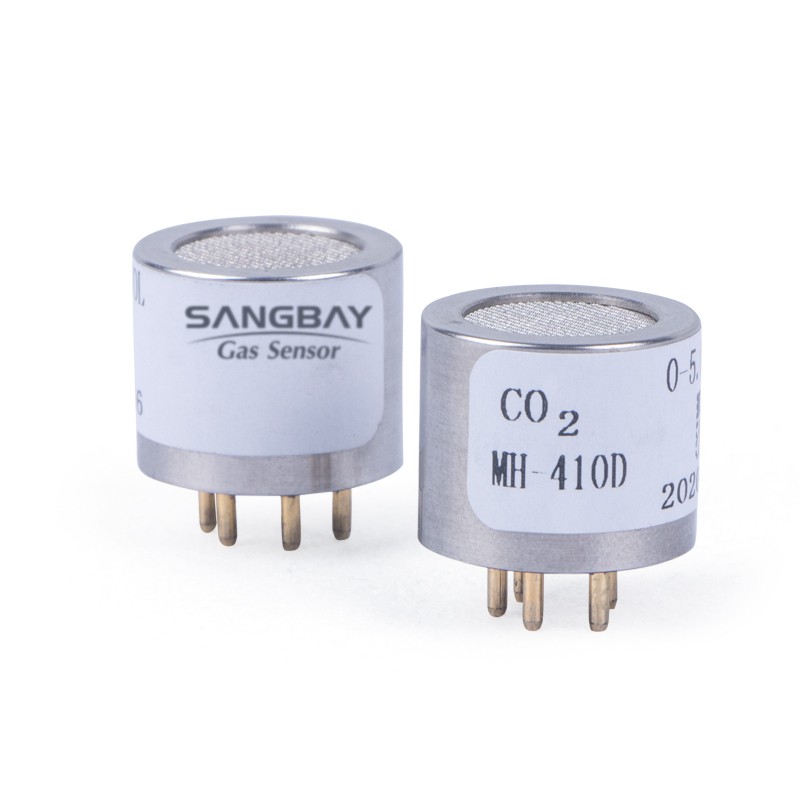

CO2 Sensor

Infrared CO2 sensor is a miniature universal intelligent sensor, which adopts NDIR theory to detect concentration of CO2 in air and has good selectivity, stable performance, long life, also is independent of Oxygen. The inside temperature sensor could be used for temperature compensation. This miniature infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, micro machine workout and superior circuit design.


TAG:   Bosean co2 sensor co2 gas detector
Introduction

Widely used for HVAC refrigeration, air monitoring indoor, industrial-process control and safety protection, agriculture and animal husbandry.

Tips:For more parameter information, please refer to the latest manual provided by

Detection Gas                                         CO2
Working Voltage 3.6~5V DC
Average Current <85 mA
Interface Level 3.0V
Detection range 0-5%vol Optional(refer Fig2.)
Output Signal UART
0.4~2V
Warm-up time 3 min
Response time T90<30s
Working Temperature -20°C ~60°C
Working Humidity 0~95%RH(no condensation)
Sizes Φ20x21.4mm
Weight 35g
Lifetime >5 years
Defense Grade IP54
