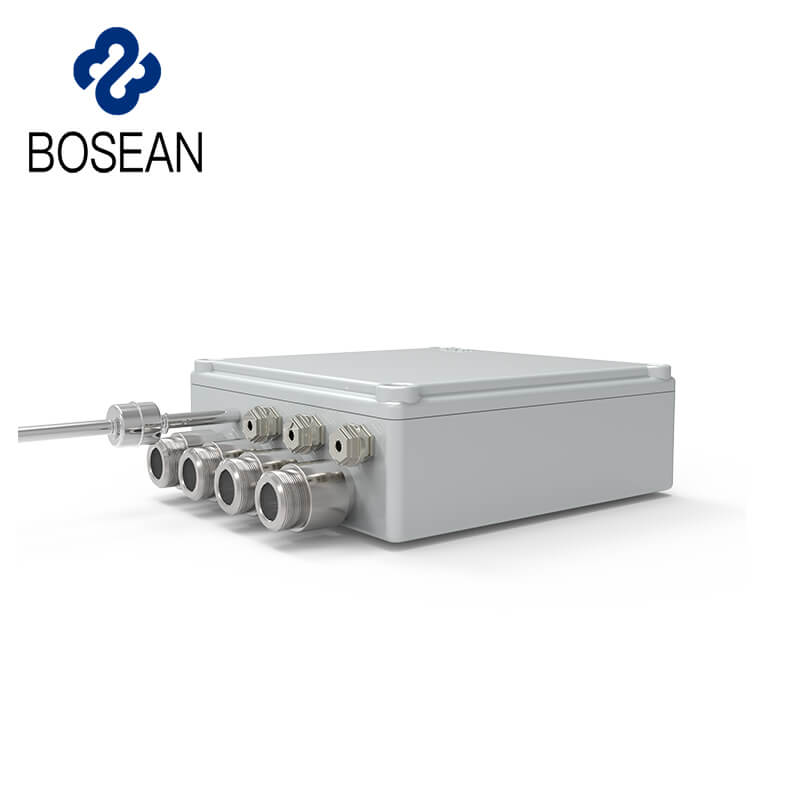

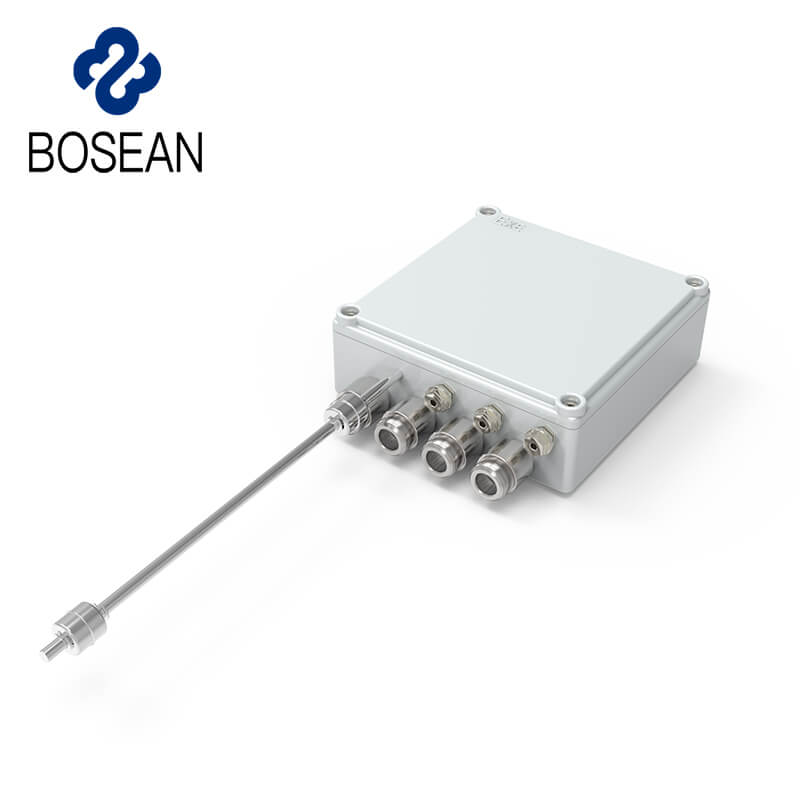

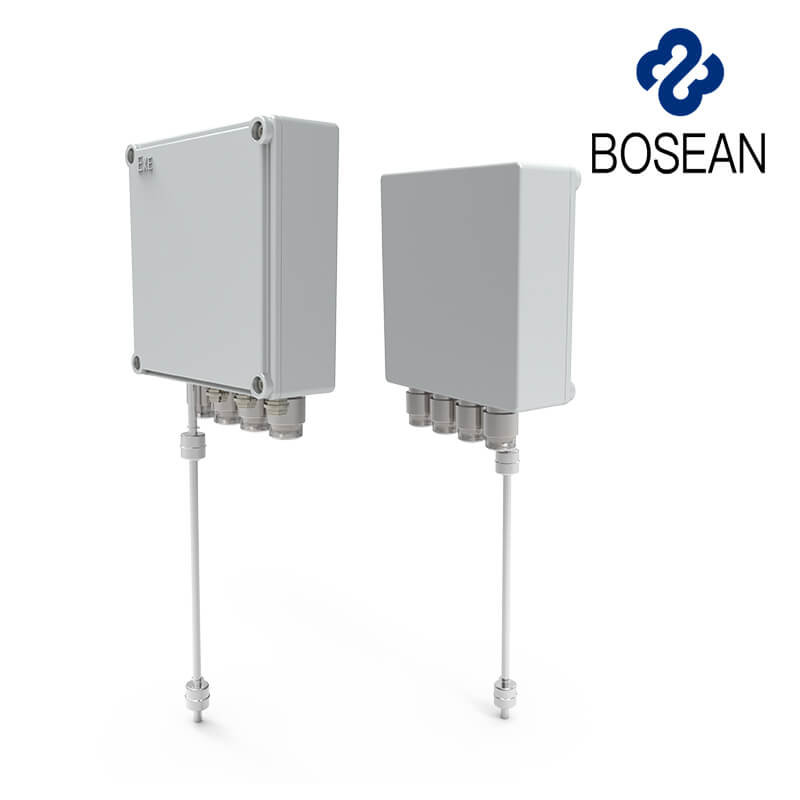

K-G70 Valve Well Multi-function Detection Terminal
Widely applicable to city gas valve wells, power cable trenches, rain and sewage wells, tunnels.pipe corridors, etc. underground environment where are not convenient to set up 220V AC, to let people enter and need to continuous testing the related gases.
TAG:   K-G70 multi-function detection terminal on-line monitoring systerm
*17520h enhanced battery lifetime
*Suitable for harsh environments
*GPRS satellite positioning

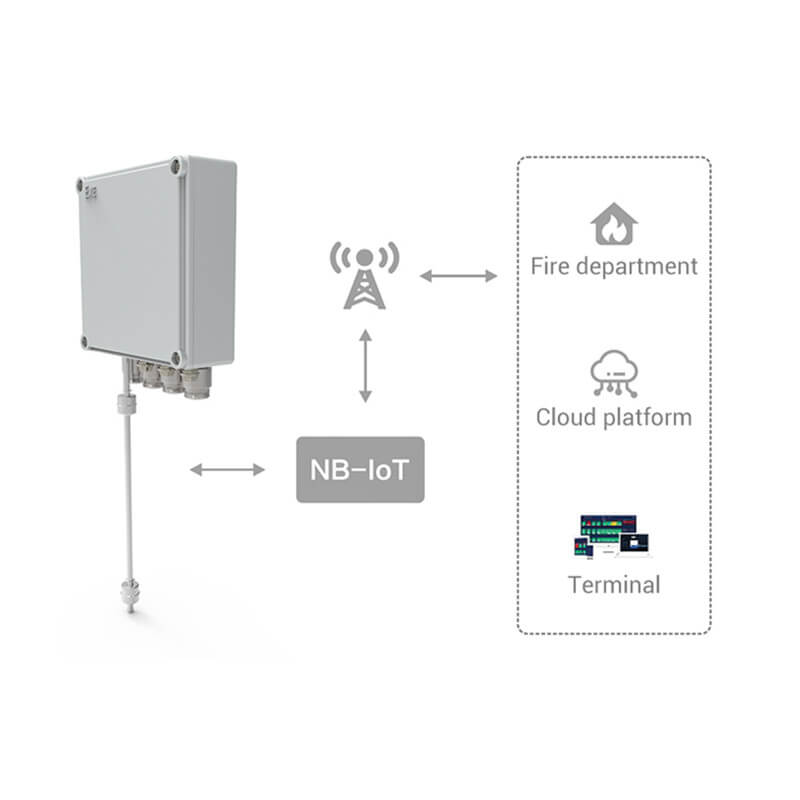

*Remote wireless data transmission
*Self-test function*Remote wireless operation
GENERAL FEATUIES
Monitoring Parameters : oxygen(02), carbon monoxide(CO), hydrogen sulfide(H2S), combustible gas(EX), water level
Working time: continuous working for 24 months without external power supply
Response time: ≤1min
Explosion-proof level : Exdibllbt6 Gb
Power Supply : lithium sub-battery
Protection level: IP65
Communication Protocol : NB-loT
Dimensions: 23+23*10cm (host)
Operating Voltage: 3.6V
Host N.W: 3KG
TAG:   K-G70 multi-function detection terminal on-line monitoring systerm
Detectable Gas | Measuring Range | Unit | Resolution |
EX | 1-100 | %LEL | 1% LEL |
H2S | 0-100 | PPM | 1 PPM |
CO | 0-1000 | PPM | 1 PPM |
O2 | 0.0-30.0 | %VOL | 0.1% VOL |
