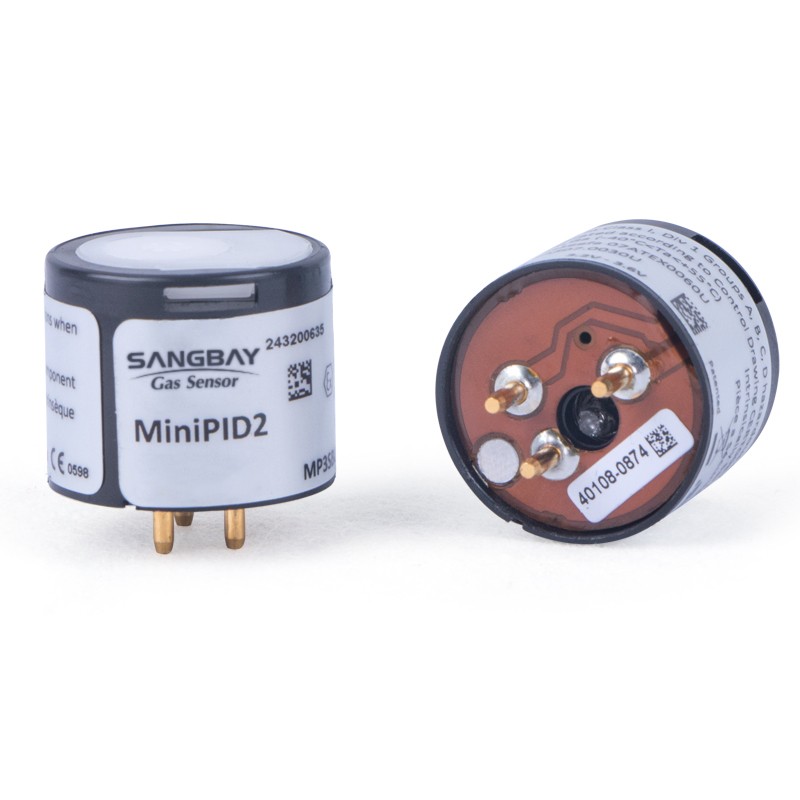

PID Sensor

PID sensor technology is very versatile and can be used, for example, for clearance measurements during shutdowns in the chemical and petrochemical industries, monitoring operations in shafts and enclosed spaces, detecting leaks and many other applications. PID sensor can measure Volatile Organic Compounds (VOCs) to very low concentrations, considered the gold standard for VOC measurement.


TAG:  Boseanpidpid gas sensorvoc gas sensor
Introduction

The sensors include a detector with lamp driver, amplifier circuitry, and user replaceable electrode stack, 10.6 eV lamp and particulate filter.

Target gases                                                                 VOCs with ionisation potentials
Minimum resolution  ppb isobutylene
Linear range  ppm isobutylene       5% deviation
Overrange  ppm isobutylene
Temperature range -40℃ to +55℃ (Intrinsically Safe); -40℃ to +65℃ (non-IS)
Temperature dependence   0℃ to 40℃, 90% to 100% of signal at 20℃; -20℃,140% of signal at 20℃
Humidity sensitivity  During operations: 0% to 75% rh transient
Weight  <8g
Warm-up time 3 min
Response time T90<30s
Lifetime >5 years
Defense grade IP54




TAG:  Boseanpidpid gas sensorvoc gas sensor

Specifications


TAG:  Boseanpidpid gas sensorvoc gas sensor
Inquiry

If you have any suggestions or opinions about our products, please leave a message, and we will immediately answer your questions. Thanks for your support.

*
*
*
